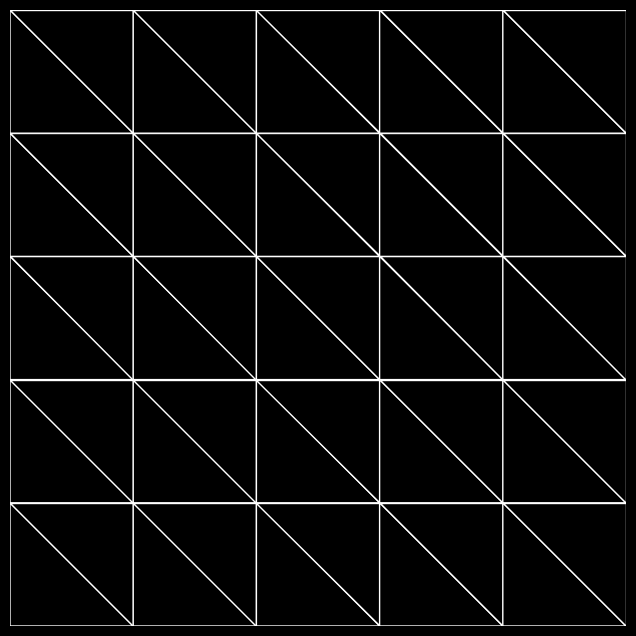

$$ \begin{aligned} &\text{he computer runs all the graphics interfaces through the chips, which is nothing else but a bunch of} \\ &\text{organizers or sieves, that reorder the on's and off's from thousands and millions of switches, which only purpose} \\ &\text{is to direct and redirect or sieve, the electric current, electricity, the power, the force through } \\ &\text{to the desired path, so the idea here is not understand something so simple, this is basically changing a bulb} \\ &\text{and turn on the switch to check if it turn up or not, the idea here is visualize what it is the best way} \\ &\text{to change all the bulbs of an stadium capable to alocate 200.000 kThousands people, and not just change} \\ &\text{the bulbs but also change the wired system that runs through all of them, all of a sudem changing one bulb } \\ &\text{seems like a really easy task.} \\ \\[5pt] &\text{But why thinking this inmense and enormous, is necesary, I only need to plot a single sine function} \\ &\text{i could do it by hand, if doing such thing is that difficult I would prefer to do that, is maybe} \\ &\text{what you are thinking now, and yeah, you're in the freedom to do whatever you think is best, but if your} \\ &\text{idea is to think about something really specific, and really punctual, which requires you to learn} \\ &\text{about this particular type of things, about this specific and punctual ways to think, then yes, you got} \\ &\text{to start thinking very inmense, so thinking little is a little bit more simple.} \\ \\[5pt] &\text{So now we begin, what are these sieves you'll be thinking, well, easy, sum this two numbers could be a sieve, } \\ &\text{substract this two numbers, could be another sieve, make this number equal to this other number, is anoother one,} \\ &\text{multiply, compare, divide, greater and less than, is another way to create ways to separate and filter information} \\ &\text{verify trueness, which means if the thing is true or false, and when I say thing I mean 1 is equal to 1, if yes then } \\ &\text{continue with the next things to do.}\\ \\[5pt] &\text{so that`s basically computing in its purest form, thats all the computer does all the time, in many many many ways to }\\ &\text{reorganize summations, comparations, multiplication, evaluation, and also one of the most important ones, }\\ &\text{create new things, stablish new information, save information, or also save this number, save this information you are reading,}\\ &\text{maybe it is useful in the future.}\\ \\[5pt] &\text{so that's basically doing computing, that's all a computer does, in many, maaanyyyy ways, different ways but }\\ &\text{at the end the same thing, at the end the same same same thing, so if you now know what's really going on }\\ &\text{how much of this things you could think of out a doing }\\ &\text{1 trillions}\\ &\text{1 quatrillions}\\ &\text{1 quintilloins}\\ &\text{1 or maybe you could just think that everything that is going around you, works like that}\\ &\text{that everything that goes in your reality works like that, that everything is a summation}\\ &\text{a substraction, a reorganization of data a store and load of information in very particular ways to make everything }\\ &\text{looks different but the same, at the same time, so maybe is life a simulation maybe you are reading letters that }\\ &\text{only appear in front of you when you are reading them, and everysingle time that you save something is only the illusion}\\ &\text{that you image yourself really doing something.}\\ &\text{so is a decaheptaoctasextaatrillion of things, doesnt sountd that big.}\\ \\[5pt] &\text{so the idea behind computers or more specificly science, is that you could alter the things in reality}\\ &\text{if the things are organized in a correct order, or fashion, something that you can think is basically a }\\ &\text{representation of this amounts, this inmense number of operations}\\ \\[5pt] &\text{so how much pixels are on a screen like 2 million ? yeah something like that right, 1920 * 1080}\\ &\text{really small, dont you think, but how many transistors are on a chip, like 10 billion}\\ &\text{but why 10 billion if I only got 2 million pixels, and that's where everything hides behind}\\ &\text{how many screens are really running on your chip, on your computer, how many screens }\\ &\text{are being sum at other things, compare, substracted, how many data on your screen can be presented}\\ &\text{in other strings, in oder words, in other numbers, how many screens are on your computer, }\\ &\text{or more clearer, how many screens can you handle, hey wait a minute I only use one screen what the hell }\\ &\text{are you talking about. Simple, suppose that you are on a cafe internet, the old ones, where people used to sit}\\ &\text{one next to the other, now if you follow this structure, could you simulate that expression on your screen}\\ &\text{it is possible to create an simulation on your computer using math and code to create a cafe}\\ &\text{internet, yes for sure, so if you can simulate computers in a computers, are you simmulating a computer}\\ &\text{or just making use of your computer more extended.}\\ \\[5pt] &\text{thats usually the most difficult idea to get on, that within your computer there are more computers, }\\ &\text{that you could make use of, if you know how to work with them, so making use of this screens or computers }\\ &\text{is what you need to understand, how to make use of computer more throughfully, how to use computers}\\ &\text{to use more computers, like painting, or building houses, learn how to build houses today, so you could }\\ &\text{build more houses tomorrow, or painting, paint something today so you could make more paints in the future}\\ &\text{so imagine that within your computer there are hundres or thousands or millions of screens, that you could}\\ &\text{could use to display things on.}\\ \\[5pt] &\text{you could display mathematical plots, like we are going to do from this moment on, or }\\ &\text{you could write words on it, or you could create pictures, or used to create diagrams}\\ &\text{to edit videos, to edit images, to simulate environments, to 3D expand multiple screens so}\\ &\text{you image yourself automatizing machines, design plans, chat or whichever you think is best}\\ &\text{but yeah you got hundrds of screens on your computer available to extend, achieve, and reach your goals,}\\ &\text{but overall try to accomplish what you choise.}\\ \end{aligned}$$

$$\LARGE\text {Shaders}$$

$$\begin{aligned} &\bullet \text{Read from memory:} && [STACK] \to \text{DATA} \\ &\bullet \text{Write to memory:} && \text{DATA} \to [STACK] \\ &\bullet \text{Add:} && a + b \to \text{DATA} + \text{DATA}\\ &\bullet \text{Subtract:} && a - b \to \text{DATA} - \text{DATA}\\ &\bullet \text{Branch on Zero/False:} && \text{if } Z = 0 \to \text{DATA} = 0\\ &\bullet \text{Branch on One/Positive:} && \text{if } Z = 1 \to \text{DATA} = 1 \end{aligned}$$ $$\\[5ex]$$ $$\begin{aligned} &\text{The previous instructions define what a computer is, and what can you do to make a computer work}\\ &\text{}\\ &\text{So if we understand now that every computer chip today, got thousands and thousands of computers, inside the }\\ &\text{the question, start to turns into what can you do to change this computers to do what you want to do}\\ &\text{now I got for you a question, can you link a computer to a pixel ?, can you place a single computer }\\ &\text{inside your pixel, can you place a computer inside 2 million pixels, the answer is yes but no,}\\ &\text{its is possible yes, it is currently working like that no, so what is really happening is that each pixel}\\ &\text{is link through a space in your computer chip that sends the information to the screen, once is all updated,}\\ &\text{but before the screen is updated there is a single computer with the rules that we specify above dedicated to}\\ &\text{each pixel.}\\ &\text{So why instead not only one computer to all the pixels?, well thats a nice question, and the answers is }\\ &\text{yes, that's how everything use to work in the past, when computers started, the main way how they used to }\\ &\text{handle the operation, was like that, but at time past, and everything start to get tighter and tighter then}\\ &\text{we start to notice; hey, you know what I can do the same thing I am doing with 1 single computer with 2 milloin }\\ &\text{of them, and even faster.}\\ &\text{The reason why is faster, is cuz compare things is slower than to make calculations, calculations is fast really}\\ &\text{fast!!, like super, super, fast. }\\ &\text{So, now you know got the idea of what we are going to do, we are going to perform calculation on multiple }\\ &\text{computers, at the same time, to graph, or plot things on the screen, thats the main goal, and the reason how, }\\ &\text{is cuz doing that thing is extremelly fast.}\\ &\text{}\\ \end{aligned}$$

$$\begin{aligned} &\text{So the idea here is to understand that every single computer is run by another computer, that a way for us to }\\ &\text{understand more computer was create more computers to make use of, so we got to invent a way to name this new }\\ &\text{computers so everything dont get messup in the process, so instead of detailing computers version 2,3,4,5....}\\ &\text{ we instead started to name them like shaders, cores, thread, parallelize, kernel, virtualize, and}\\ &\text{etc, etc, etc...}\\ &\text{instead imagine the computers using others computers in a different way, with the purpose to achieve a goal.}\\ &\text{now what we are going to do is define how we can make use of a version of computers names shaders}\\ &\text{which is the closets way to make use of the graphic structures.}\\ &\text{The director is the computer that runs the compiler, which is the programming language of your choice,}\\ &\text{and that allows you to create the layers between the chip and the GPU interface }\\ &\text{so this is going to be the first way to connect the two points, the CPU is the place where you are going}\\ &\text{to use this programming language, to use the layers to share information with your graphics card}\\ &\text{which is the one who would take care of the displaying of your plots, offcourse there is a way to make}\\ &\text{this in the CPU, but is more manageable to do that in the GPU.}\\ &\text{So the GPU is the one which can operate this idea of millions of computers in a more clearer way.}\\ &\text{the main language of your choice is going to be the one who is going to direct which computers}\\ &\text{at which times, and in which way they are going to behave.}\\ &\text{imagine as if you were running your program by launching a command run, but instead you are running programs}\\ &\text{inside a programming language, which create the communication between the next layer of abstraction}\\ &\\[5ex] &\text{Launching the computers is the key cuz thats whats going to allow you to ordenate things a little bit }\\ &\text{more clearer, mathematics is the key, make use of mathematics is the main idea here, learn how to }\\ &\text{make use of the ways to graphics functions things is what we need to do.}\\ &\text{now what we are going to do is make use of shaders by setting this thing up only to run shaders}\\ &\text{just one shaders, and we are going to get exhaust to make use of this thing}\\ &\text{there's million of things that we could write on a shader.}\\ &\text{So we are going to project many things in shaders, so we could make really nice graph in the future.}\\ &\\[5ex] &\text{What we now know about shaders is that they work as computers, but you also know that within a shader there are}\\ &\text{also hundreds of computers, them which run in parallel, which only mean that current-electricity runs through it}\\ &\text{making all the computers inside the shader to run at the same time, all the single computers running at the same}\\ &\text{time, every single computer executed at the same time, and we can make these high number of computers to work }\\ &\text{how we wanted, and how we can do that is the key point here, we got to understand them before hand; we got to}\\ &\text{learn how to make use of them so we can make use of them.}\\ &\text{The question here is how we can make thousands of mini computers inside the shader to work how we want,}\\ &\text{which means output what we want them to output.}\\ &\text{}\\ \end{aligned}$$

    CGPROGRAM

    #pragma vertex vert alpha
    #pragma fragment frag alpha

    #include "UnityCG.cginc"

    struct VertexInfo
    {
        float2 uv : TEXCOORD0;
        float4 vertex : POSITION;
    };

    struct PixelData
    {
        float2 uv : TEXCOORD0;
        float4 vertex : SV_POSITION;
    };

    sampler2D _MainTex;

    float4 _MainTex_ST;

    int _SetScreen ;
        float _StepTime; // This receives the value from C#

        PixelData vert (VertexInfo v)
    {
        PixelData o;
        o.vertex = UnityObjectToClipPos(v.vertex);
        o.uv = TRANSFORM_TEX(v.uv, _MainTex);
        return o;
    }

    fixed4 frag (PixelData i) : SV_Target
    {

        // THIS CODE MEANS
        // HOW TO RUN THE PIXELS OF THE SCREEN.

        float2 uv =  i.uv ;

        fixed4 colorWhite = float4(1,1,1,1); // Color white.
        fixed4 colorBlack = float4(0,0,0,1); // Color Black.

        col = fixed4(uv.x, uv.y , 0.0, 1.0);
        return col;
    }

    ENDCG

$$\begin{aligned} &\text{What we we need to do now first of all is to explain how to make use of this pixel computers.}\\ &\text{to do such thing we got to create and environment where we can identify where the computing can happen.}\\ &\text{Lets explain all this stages.}\\ \end{aligned}$$

    CGPROGRAM
    #pragma vertex vert alpha
    #pragma fragment frag alpha

    #include "UnityCG.cginc"


$$\begin{aligned} &\text{for each pixel and vertex. depending to which type of geometry you are writing them for}\\ &\bullet \text{\textbf{\large {the "CGPROGRAM"}}, headline tag define the start of the program for the shader, which then is going to run }\\ &\text{on your GPU, imagine as if you were running your program in your console, but instead of running it in your }\\ &\text{you run it on the GPU.}\\ &\bullet\text{\textbf{\large {\#pragma}} vertex vert alpha and \#pragma fragment frag alpha, are flags that allow the program to run }\\ &\text{specificly on a section of the GPU, and that it should provide the rest of the run program with the }\\ &\text{functions for the vertex and fragment shader, so it verifies when the function outputs. }\\ &\bullet\text{\textbf{\large {\#include "UnityCG.cginc"}}, is a library that would allow you to make use of integrated functions and }\\ &\text{methods build upon unity, that we are going to use in the future to make uses of the engine which is UNITY, }\\ &\text{to create layers of abstraction between the different qualities of an already created environment. }\\ \end{aligned}$$

    struct VertexInfo
    {
        float2 uv : TEXCOORD0;
        float4 vertex : POSITION;
    };

    struct PixelData
    {
        float2 uv : TEXCOORD0;
        float4 vertex : SV_POSITION;
    };

$$\begin{aligned} &\bullet\text{\textbf{\large {struct VertexInfo and struct PixelData}} , the next lines are going to allow us to directly specify on the chip }\\ &\text{which information we need to use and which is going to be the name that we are going to use to make use of them.}\\ &\bullet\text{\textbf{\large {TEXCOORD0}}, litteraly specify a section of the Chip, in the gpu, that is going to be used as minimicrocomputers}\\ &\text{this is basically a section that runs the simulated pixels in the chip, so we can evaluate them. and operate them by}\\ &\text{launching a set instrution of instructions over them.}\\ &\bullet\text{\textbf{\large {POSITION}} and \textbf{\large {SV\_POSITION}}, is the same as the previous TEXCOORD0, but instead for vertexes, so it usually tents to }\\ &\text{be a small number of vertexes, but with new chips and new optimizations this number has also increase, we got to keep in }\\ &\text{mind that a section of our TEXCOORD0 is going to run on specifily sections of the vertexes which are usually triangles.}\\ &\text{keep in mind that the TEXCOORD0 information map to specific triangles. made out of the vertexes}\\ &\text{the reason why there are two different POSITION and SV\_POSITION, is cuz one is before translating them in the space}\\ &\text{ and the second one is after the vertexes were translated.}\\ &\text{}\\ \end{aligned}$$

    sampler2D _MainTex;
    float4 _MainTex_ST;
    int _SetScreen ;
    float _StepTime;

$$\begin{aligned} &\bullet\text{\textbf{\large {sampler2D}} \_MainTex, there are going to be similar data structures, like this one but instead of thinking}\\ &\text{it as an array you should think of them as an image, that you could access if you iterate over the (x,y) axis,}\\ &\text{the reason why information is easy to store this way, is cuz remember that chips are basically cables and switches}\\ &\text{all miniaturize to the atom scale, so arrange things in lines is more difficult cuz phisically is harder to build }\\ &\text{is like a book, which thing is easier to handle, a single sheet of paper like a rool of paper,}\\ &\text{ or a notebook where you can swtich to each page depending which thing you need. cuz if it were the roll, the}\\ &\text{in order to read something in the middle of the roll thing you write either you need to unroll it or unroll it }\\ &\bullet\text{\textbf{\large {float4}}, this one is like a mini array of 4 items, that you can populate with floats, so prety easy.}\\ &\text{usually is used to represent or colors , RGBW, or position in space XYZW}\\ &\bullet\text{\textbf{\large {float}}, this is a basic float, really clear and straight}\\ &\bullet\text{\textbf{\large {int}}, this is a integer, normally running things in integer tents to be easier. when data operations are necessary.}\\ &\text{}\\ \end{aligned}$$

    PixelData vert (VertexInfo v)
    {
        PixelData o;
        o.vertex = UnityObjectToClipPos(v.vertex);
        o.uv = TRANSFORM_TEX(v.uv, _MainTex);
        return o;
    }

$$\begin{aligned} &\bullet\text{This function got for only purpose in this shader, is to populate the information in the chips, withe the position of }\\ &\text{the vertexes, in this case we are using a plane as our main shape our canvas where to position the vertexes, so imagine a }\\ &\text{ square build up by two triangles. or a square build up or draw up by rectangle triangles.}\\ &\text{}\\ \end{aligned}$$

    fixed4 frag (PixelData i) : SV_Target
    {
        // THIS CODE MEANS
        // HOW TO RUN THE PIXELS OF THE SCREEN.

        fixed4 colorWhite = float4(1,1,1,1); // Color white.
        fixed4 colorBlack = float4(0,0,0,1); // Color Black.
        float2 uv =  i.uv ;

        fixed4 col = fixed4(uv.x, uv.y , 0.0, 1.0);

        return col;

    }

$$\begin{aligned} &\text{This function is the one where we are going spend a lot of time on , its because here is where the mathematics }\\ &\text{for each single mini computer happens, imagine that each single pixel got a computer on, and what you are going to do is }\\ &\text{use a computer over each pixel to modify it, what you are going to do is modify the pixel by doing different types of }\\ &\text{mathematical operations so all of the colors could change in tandem and in unisom in the way we want, }\\ &\text{that's exactly what we are doing, literally 3d is practically and illusion, that looks like there is something in depth}\\ &\text{when in reality is just colors being display in a very particular way, in unison, or unity? the way you want.}\\ &\bullet\text{\textbf{\large {SV\_Target}} what this means is like the vertexes flag that we use previously, is that this is }\\ &\text{ going to set things up for placing or position orders, but instead to set vertexes is going to set pixels.}\\ &\text{}\\ &\text{the pixels came from the structured that we set up at the beggining this structured is the one that is going to work}\\ &\text{as holder of the pixels, the way how the chip stored this information is on planes or more clearer, images or fields}\\ &\text{of transistors that are going to work as a coordinate system, (X,Y), where the information is going to be updated and }\\ &\text{retrived, so as its flag stated TEXCOORD0, it came in a coordinate system.}\\ &\text{so in the structured ~i~, and the subvariable uv, the pixels are abstracted.}\\ &\text{}\\ \end{aligned}$$

    fixed4 frag (PixelData i) : SV_Target

$$\begin{aligned} &\text{now is where all we been saying about mini computers, and computers inside computers start to get sense, the reason }\\ &\text{of this is cuz, the thing that we are going to operate from this moment on is the pixel, from the moment the function}\\ &\text{ "frag" start, the operation that we are going to process from this precise instant is on the pixel, we are going to make }\\ &\text{operations that are going to make the pixel change its colors in a way that is very particular, a very distinctive way }\\ &\text{to reorder the pixel in multiple ways. that it allow us to visualize things, represent things, organize details, but overall}\\ &\text{change its colors to make everything got sense, give sense to the pixel is what we are doing. direction, order, cohesion}\\ &\text{clarity, steps, ways, paths, to behave according the representations that we want to set up for it to follow. }\\ &\text{}\\ &\text{So when we evaluate like the did in \textbf{\large{float 2 uv}} is that we are getting litteraly is the coordinates of the pixel }\\ &\text{we are supposed to operate, the information that this variable contain is the coordinate of the pixel that we are going to modify}\\ &\text{normaly this coordinates that we it set up for default came from \textbf{\large{-1 to 0}} so if we output from the function }\\ &\text{as it detail on we must create a \textbf{\large{fixed4}} data type, that we could use to set the colors of the pixels, we could }\\ &\text{use float instead but for this example we are going to use the default, which is the fixed4, whom came with }\\ &\text{8-bit value ranging from -2 to 2, to output a color, and how we are going to populate the color with, easy we are going to set up }\\ &\text{the values of color, usualy this go, from 0 to 1, for each RGB, and W for the albedo or brightness normally. }\\ &\text{by using the coordinates from the TEXCOORD0, that came from 0 to 1 for all the position of the pixels in the coordinate system}\\ &\text{in the chip.}\\ \end{aligned}$$

    float2 uv =  i.uv ;

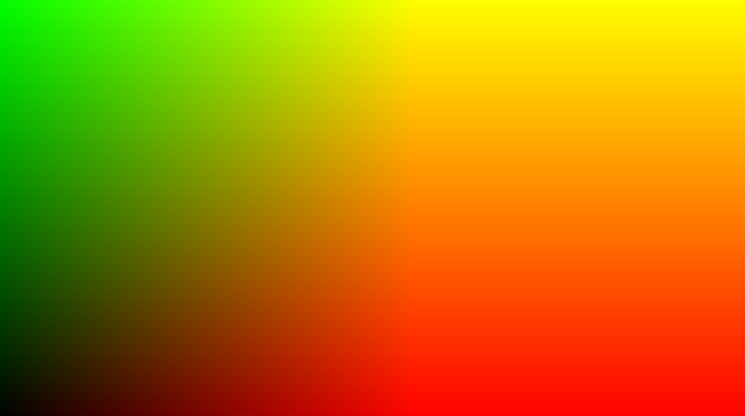

$$\begin{aligned} &\text{So if we populate the color using this information \textbf{\large {fixed4(uv.x, uv.y, 0, 1.0)}}, we are going to notice}\\ &\text{that the elements from the bottom left are going to be black cuz the position they are representing is the (0,0) coordinate,}\\ &\text{but if instead by go to the x axis limit which would be the bottom right of the screen we are goinig to check that the }\\ &\text{color is going to be red cuz the position is going to be in the corodinate system (1,0) but if we go to the right up corner (1,1)}\\ &\text{we are going to check that if we mix two colors red and green we are going to get yellow which is the collor that's on the }\\ &\text{top right corner.}\\ \end{aligned}$$

    fixed4 col = fixed4(uv.x, uv.y , 0.0, 1.0);

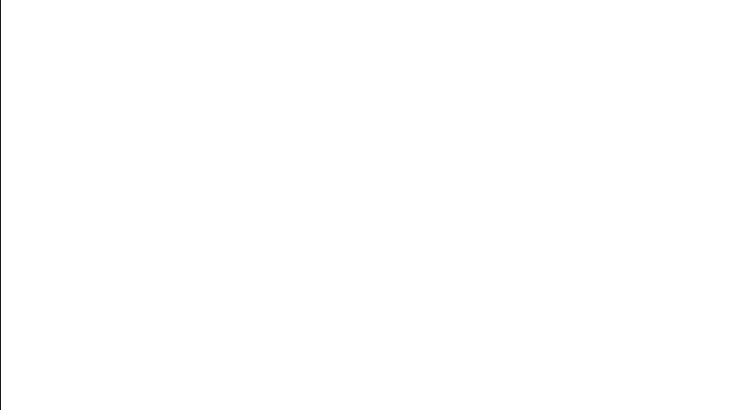

$$\begin{aligned} &\text{if we instead make the output variable to (1,1,1,1) we are going to output the color white }\\ \end{aligned}$$


    fixed4 frag (PixelData i) : SV_Target
    {

        // THIS CODE MEANS
        // HOW TO RUN THE PIXELS OF THE SCREEN.

        fixed4 colorWhite = float4(1,1,1,1); // Color white.
        fixed4 colorBlack = float4(0,0,0,1); // Color Black.

        float2 uv =  i.uv ;


        fixed4 col = colorWhite;

        return col;

    }


$$\begin{aligned} &\text{but if we change the color x variable for 1 we are going to make the output variable to (1,0,0,1)}\\ &\text{the output we expect in this case as the RGBW states, we spect a 100\% red as output }\\ \end{aligned}$$


fixed4 frag (PixelData i) : SV_Target
{

    // THIS CODE MEANS
    // HOW TO RUN THE PIXELS OF THE SCREEN.

    fixed4 colorWhite = float4(1,1,1,1); // Color white.
    fixed4 colorBlack = float4(0,0,0,1); // Color Black.
    fixed4 colorRed = float4(1,0,0,1); // Color Red.

    float2 uv =  i.uv ;


    fixed4 col = colorRed;

    return col;

}


$$\LARGE\text{Smoothstep main Theory}$$

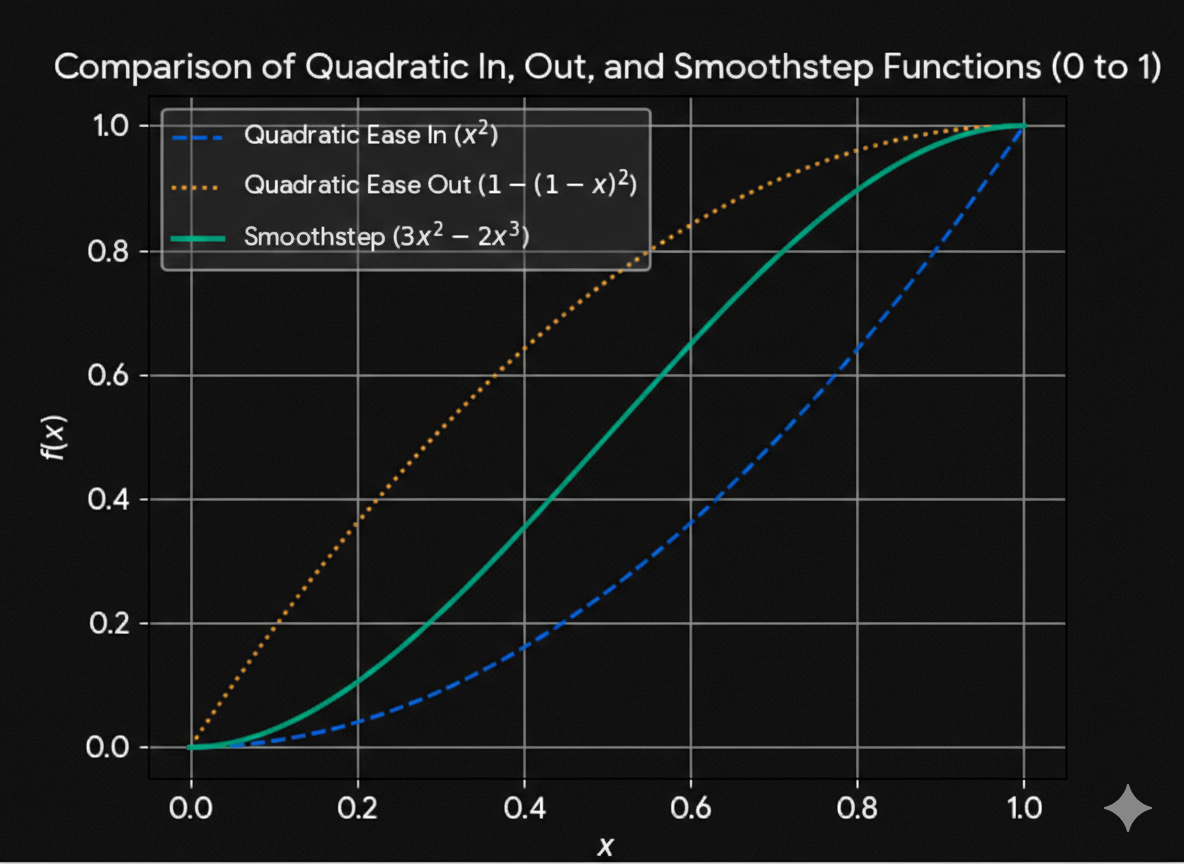

$$\begin{aligned} &\text{the smooth step functions is a mathematical method, that is going to help us blend things into a more smoother data }\\ &\text{display of information, in this case we are talking about pixels, but the questions that you maybe are wondering }\\ &\text{is how this works, which are the things that this thing does that makes this thing to do that thing we . }\\ &\text{set up to do. }\\ &\text{lets brake it down in pieces. }\\ \end{aligned}$$


    float a = a;
    float b = b;
    float x = x;

    float d = smoothstep(a, b, x);


$$\begin{aligned} &\text{this is how the smoothstep function look in code, provided by the shading language library. in this case is CG}\\ &\text{the standard for Unity, and also the previous version for HLSL, the DirectX shading language for Microsoft.}\\ &\text{}\\ &\text{The idea right now is to explain what is behind curtains that we could use to explain why the things happen}\\ &\text{the way they do.}\\ &\text{The question now, what's behind curtains? EASY like cutting butter, just and simple math}\\ \end{aligned}$$ $$\text{}$$ $$\text{this is the function represented in mathematical notation}$$ $$\text{smoothstep}(a, b, x) = S(a, b, x)$$ $$\\[5ex]$$ $$\text{This is the output we want to get from the function}$$ $$S( a, b, x) = S = 3t^2 - 2t^3$$ $$\\[5ex]$$ $$\text{remember that there are multiples ways to get this output our similar ones, not just this way}$$ $$\text{We are going to derive this polinomial function later}$$ $$\\[5ex]$$ $$\begin{aligned} &\text{Now the question here is how we could define } \quad t \quad \text{ in such a way that fills the gaps for our }\\ &\text{function, the polimomial got as primary purpose to make a transition of data from one point to the other}\\ &\text{the idea, is to make information plot into this determined field, so we can transition}\\ &\text{between data as the name of the function state in a smoothly fashion, but how we can do such thing.}\\ &\text{The output is going to be the polinomial function solution for each t, but how we populate this function ?}\\ &\text{now how we could reorganize or reorder information from one size end to the other}\\ \end{aligned}$$ $$\\[5ex]$$ $$\begin{aligned} &\text{that's what the clamp function is going to help us do, what we are going to do with the clamp function}\\ &\text{is limit the function bounds so each of the points on one end is map to the other end directly, which means}\\ &\text{that for a certain section of the\quad }\mathbb{R} \quad \text{numbers, we are going to map this section}\\ &\text{between the section } 0 - 1 \quad \text{of the} \quad \mathbb{R}\quad \text{numbers.} \\[1.5em] \end{aligned}$$ $$t = \left(\text{clamp}\left(\frac{x - a}{b - a},\quad 0,\quad 1\right)\right)$$ $$t = \text{max}\left(0, \quad\text{min}\left(1, \quad \frac{x - a}{b - a}\right)\right)$$ $$\begin{aligned} \\[1.5em] &\text{so lets define the first section as:} \\ &\bullet\quad 1\text{-}section = f \quad : \mathbb{R} \to [a, b]\\ &\text{And the second section as:}\\ &\bullet\quad 2\text{-}section = f \quad : \mathbb{R} \to [0, 1] \\[1.5em] &\text{So the idea here is to make a map from:}\\ &\text{}\quad \mathbb{R} \to [a, b] \implies \mathbb{R} \to [0, 1] \\ &\text{Or in other terms:}\\ &\quad 1\text{-}section: \mathbb{R} \to [a, b] \quad \implies \quad 2\text{-}section: \mathbb{R} \to [0, 1] \end{aligned}$$ $$\begin{aligned} \\[0.5em] &\text{The way how we do the mapping, besides on the properties of division, which are }\\ &\text{How many times the denominator could fit in the numerator, how many denominators elements}\\ &\text{are necessary to make equality to the numerator}\\ \end{aligned}$$ $$\\[2.0em]$$ $$\frac{\text{Numerator}}{\text{Denominator}}$$ $$\\[2.0em]$$ $$\frac{x - a}{b - a}$$ $$\\[3.0em]$$ $$\text{Lets understand the first section of this division}\\$$ $${x - a}$$ $$\begin{aligned} \\[0.5em] &\text{So how we could make interpretation or use of the division definition into the current formula, simple}\\ &\text{the process we are going to follow is pick the first section of the }\mathbb{R} \text{ that'll be the domain} \\ &\text{and identify if the point that we are evaluating is in the segment or not, and if yes, check how far}\\ &\text{is the point on the section from the beggining bound of the section.}\\ \end{aligned}$$

$$\begin{aligned} &\text{So if the point } ''X'' \text{ from the real numbers } ''X'' \in \mathbb{R} \text{ is } \textbf{BEFORE}\text{ the } ''a'' \text{ bound, which means that}\\ \end{aligned}$$ $$X < a$$ $$ \text{So if we make a substraction}$$ $$ for \ all \quad x < a \implies (x - a) = \mathbb{R} < a = always\;in\ \mathbb{R}^-$$ $$\text{which means that the }"X"\text{ point is } \textbf{BEFORE}\text{ the } "a" \text{ bound}\\$$ $$\\[3.0em]$$ $$\begin{aligned} &\text{So if the point } ''X'' \text{ from the real numbers } ''X'' \in \mathbb{R} \text{ is } \textbf{IN} \text{ the } ''a'' \text{ bound, means that}\\ \end{aligned}$$ $$X = a$$ $$ \text{So if we make a substraction}$$ $$ for \ all \quad x = a \implies (x - a) = 0 = always\;in\ 0$$ $$\text{which means that the }"X"\text{ point is exactly } \textbf{AT}\text{ the } "a" \text{ bound}\\$$ $$\\[3.0em]$$ $$\begin{aligned} &\text{So if the point } ''X'' \text{ from the real numbers } ''X'' \in \mathbb{R} \text{ is } \textbf{AFTER} \text{ the } ''a'' \text{ bound, which means that}\\ \end{aligned}$$ $$X > a$$ $$ \text{So if we make a substraction}$$ $$ for \ all \quad x > a \implies (x - a) = \mathbb{R} > a = always\;in\ \mathbb{R}^+$$ $$\text{which means that the }"X"\text{ point is } \textbf{AFTER}\text{ the } "a" \text{ bound}\\$$

$$\\[3.0em]$$ $$\begin{aligned} &\text{Rememeber that also this substraction represent the distance from } "X" \ to\ "a" \text{ independly of the sign} \\ \end{aligned}$$ $$\left| a - b \right| = \left| b - a \right|$$ $$\\[2.0em]$$ $$\\[3.0em]$$ $$\text{lets make and example about each situation:}\\$$ $$\\[3.0em]$$ $$\begin{aligned} &\text{Given the bound } a = 10 \text{ and the point } x = 4: \\ &x < a \implies 4 < 10 \\ \\ &\textbf{1. Subtraction:} \\ &x - a = 4 - 10 = -6 \\ \\ &\textbf{2. Result:} \\ &-6 < 0 \implies (x - a) \in \mathbb{R}^- \\ \\ &\text{Let } a = 10 \text{ and } b = 4 \\ \\ &\textbf{Left Side: } |a - b| \\ &|10 - 4| = |6| = 6 \\ \\ &\textbf{Right Side: } |b - a| \\ &|4 - 10| = |-6| = 6 \\ \\ &\textbf{Conclusion:} \\ &|10 - 4| = |4 - 10| \implies 6 = 6 \\ \\ &\therefore \text{The point } x \text{ is confirmed to be \textbf{BEFORE} the bound } a. \end{aligned}$$ $$\\[3.0em]$$ $$\begin{aligned} &\text{Given the bound } a = 10 \text{ and the point } x = 10: \\ &x = a \implies 10 = 10 \\ \\ &\textbf{1. Subtraction:} \\ &x - a = 10 - 10 = 0 \\ \\ &\textbf{2. Result:} \\ &x - a = 0 \implies (x - a) \notin \mathbb{R}^+ \cup \mathbb{R}^- \\ \\ &\text{Let the bound } a = 10 \text{ and the point } b = 10 \\ \\ &\textbf{Left Side: } |a - b| \\ &|10 - 10| = |0| = 0 \\ \\ &\textbf{Right Side: } |b - a| \\ &|10 - 10| = |0| = 0 \\ \\ &\textbf{Conclusion:} \\ &|10 - 10| = |10 - 10| \implies 0 = 0 \\ &\therefore \text{The point } x \text{ is confirmed to be exactly \textbf{AT} the bound } a. \end{aligned}$$

$$\\[3.0em]$$ $$\begin{aligned} &\text{Given the bound } a = 10 \text{ and the point } x = 15: \\ &x > a \implies 15 > 10 \\ \\ &\textbf{1. Subtraction:} \\ &x - a = 15 - 10 = 5 \\ \\ &\textbf{2. Result:} \\ &5 > 0 \implies (x - a) \in \mathbb{R}^+ \\ \\ &\text{Let } a = 10 \text{ and } b = 15 \\ \\ &\textbf{Left Side: } |a - b| \\ &|10 - 15| = |-5| = 5 \\ \\ &\textbf{Right Side: } |b - a| \\ &|15 - 10| = |5| = 5 \\ \\ &\textbf{Conclusion:} \\ &|10 - 15| = |15 - 10| \implies 5 = 5 \\ &\therefore \text{The point } x \text{ is confirmed to be \textbf{AFTER} the bound } a. \end{aligned}$$ $$\huge\boxed{x - a}$$ $$\\[4.0em]$$ $$\text{Now what we had define how the numerator of the division works, so lets break down the denominator }$$ $$\frac{x - a}{b - a} \implies \frac{\text{Numerator}}{\text{Denominator}}$$ $$\\[2.0em]$$ $$\begin{aligned} &\text{What is in reality the operation that in the Denominator is really following, which is in reality the steps that }\\ &\text{this substraction is going to do to the entire formula, which are in reality the motions that are going to be }\\ &\text{modify in the entire of this equation ann in which way, which are the things that this operation is going to affect }\\ &\text{in the entire solution of this equation, how and why.} &\\[2.0em] \end{aligned}$$ $${b - a}$$ $$\\[2.0em]$$ $$\begin{aligned} &\text{We got to define the bounds of the substraccion, so its basically as the previous substraction, but in this case }\\ &\text{is extremely necessary to define if the bounds are or } a < b \ or \ a > b \\ \end{aligned}$$ $$\begin{aligned} &\text{if the bounds of the denominator are set to } a < b \\ &\text{then this operation is going to lets us now the distance from position } a \text{ to position } b \text{ in the }\mathbb{R} \\ &\text{ this result would always, ALWAYS + be positive } \\ &for all \ a < b \implies (b - a) \in \mathbb{R}^+ \\ \end{aligned}$$

$$\\[2.0em]$$ $$\begin{aligned} &\text{if the bounds of the denominator are set to } a > b \\ &\text{then this operation is going to lets us now the distance from position } a \text{ to position } b \text{ in the }\mathbb{R} \\ &\text{ this result would always, ALWAYS - be negative } \\ &forall \ a > b \implies (b - a) \in \mathbb{R}^- \\ \end{aligned}$$ $$\\[2.0em]$$ $${b - a}$$ $$\\[2.0em]$$ $$\begin{aligned} &\text{lets set an example right now as... } a < b \text{ ...so we could check exactly what is happening.} \\ &\text{ as we konw... }, |b - a|, \text{... if ...} a < b ,\ \text{ for each every substraction we are going to get a positive value } \\ &\text{ but the question here is what does this values represent in reality, which is the definition of this substraction, easy,} \\ &\text{ the line or bar, size that is going to be our ruler, the thing that allows us to measure things, the unit of measure. } \\ \end{aligned}$$

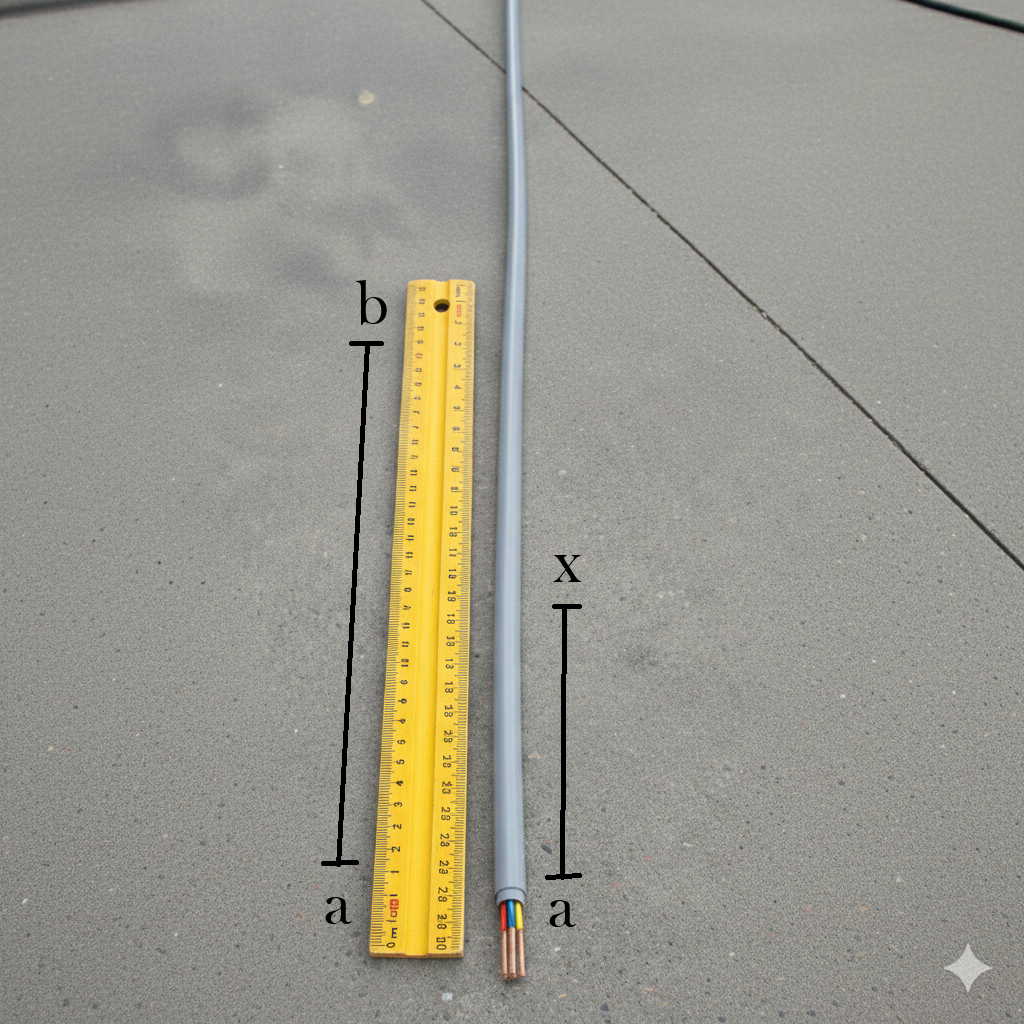

$$\begin{aligned} &\text{ now you'll be wondering which is exactly the things that we are going to measure, which are the values that we are going to } \\ &\text{ measure, which are the ideas that we need to specify here, so we could understand how we could measure things with a value } \\ &\text{ the idea besides in the expression theory and concepts of DIVISIONS, so lets explain how this sitaution works. } \\ \end{aligned}$$ $${|x-a|}\\$$ $$\begin{aligned} &\text{We already know that this expression is going to tell us how far is the }\ x \ \text{ from the }\ a \\ &\text{independly of the sign.} \\ \end{aligned}$$ $${x-a}\\$$ $$\begin{aligned} &\text{and this expression is going to provide us with a sign, which is going to tell us if the... } x \text{ ...is before the... } a \\ &\text{or if the... } x \text{ ... is after the ... } a \text{ ... position on the line.} \\ &\text{if the substraction equals to 0, that means that the... } x \text{ ... is currently at the same spot or position as... } a \\ \end{aligned}$$ $$\begin{aligned} &\text{ and we also know that the difference between... } b - a \text{ ... when... } b > a \text{ ... would always be positive }\\ &\text{ and the value that this operation is equal is the distance from... } a \text{ ...to... } b \\ \end{aligned}$$ $$\begin{aligned} &\text{So once we had define how the first distance is measure, and we are able to identify on which position of the line the... } x \\ &\text{is located, then the question that rise up is how we could use this information, what can we do to make this information }\\ &\text{useful, well now the idea is to make use of the information that we just define into something useful.}\\ &\text{and usefulness, only appear when we are answering questions, so which is the question here that we want to answer.}\\ &\text{the questions here and the theorem that we want to prove is the next one}\\ \end{aligned}$$ $$\\[5ex]$$ $$\large\textbf{how many } \boldsymbol{(b - a)} \textbf{ are in } \boldsymbol{(x - a)} \textbf{ ? }$$ $$\\[5ex]$$ $$\large\boldsymbol{\frac{x - a}{b - a}} = \boldsymbol{\dfrac{\textbf{line to measure}}{\textbf{ruler}}}$$ $$\\[5ex]$$

$$\begin{aligned} &\text{so now that we are able to measure how many denominators are in the numerator, then we need to "clamp" }\\ &\text{which are going to help us identify or determine which values of... } x - a \text{ ... are going to be useful for us}\\ &\text{in this case we are going to set the values between... } 0 \ \& \ 1 \text{ ...which are going to represent the values within the }\\ &\text{range of... } b - a \text{ ... which is the unit of measure that is going to help us map the values of... } x \text{ ...to the }\\ &\text{range of... } 0 \ \& \ 1 \\ &\text{remember that witin the } \mathbb{R} \text{ numbers, exist an infinite number of items, that we are going to use to map from one }\\ &\text{representation to the other, or you could also say from one line space to the other line space.}\\ \end{aligned}$$ $$\begin{aligned} &\text{Given: } x = 2, \ a = 10, \ b = 30 \\ \\ &\textbf{Step 1: Calculate the Numerator (Line to measure)} \\ &x - a = 2 - 10 = -8 \\ \\ &\textbf{Step 2: Calculate the Denominator (Ruler)} \\ &b - a = 30 - 10 = 20 \\ \\ &\textbf{Step 3: Form the Fraction} \\ &\frac{x - a}{b - a} = \frac{-8}{20} = -0.4 \\ \\ &\therefore \text{The result is negative because the point } x \text{ is outside the bound to the left.} \\[5ex] &\text{Given: } a = 10, \ b = 30, \ x = 10 \\ \\ &\text{Condition: } x = a \implies 10 = 10 \\ \\ &\textbf{1. Calculate the Numerator (Line to measure)} \\ &x - a = 10 - 10 = 0 \\ \\ &\textbf{2. Calculate the Denominator (Ruler)} \\ &b - a = 30 - 10 = 20 \\ \\ &\textbf{3. Form the Fraction} \\ &\frac{x - a}{b - a} = \frac{0}{20} = 0 \\ \\ &\therefore \text{The result is exactly \textbf{0} because the point } x \text{ is at the start of the ruler.} \\[5ex] &\text{Given: } a = 10, \ b = 30, \ x = 25 \\ \\ &\text{Condition: } a < x < b \quad (10 < 25 < 30) \\ \\ &\textbf{1. Calculate the Numerator (Line to measure)} \\ &x - a = 25 - 10 = 15 \\ \\ &\textbf{2. Calculate the Denominator (Ruler)} \\ &b - a = 30 - 10 = 20 \\ \\ &\textbf{3. Form the Fraction} \\ &\frac{x - a}{b - a} = \frac{15}{20} = 0.75 \\ \\ &\therefore \text{The result is a positive decimal } (0.75) \text{ because the point } x \text{ is \textbf{AFTER} } a \text{ but \textbf{WITHIN} the ruler.} \\[5ex] &\text{Given: } a = 10, \ b = 30, \ x = 40 \\ \\ &\text{Condition: } x > b \implies 40 > 30 \\ \\ &\textbf{1. Calculate the Numerator (Line to measure)} \\ &x - a = 40 - 10 = 30 \\ \\ &\textbf{2. Calculate the Denominator (Ruler)} \\ &b - a = 30 - 10 = 20 \\ \\ &\textbf{3. Form the Fraction} \\ &\frac{x - a}{b - a} = \frac{30}{20} = 1.5 \\ \\ &\therefore \text{The result is \textbf{1.5}} \text{ because the point } x \text{ has exceeded the ruler by } 50\%. \end{aligned}$$

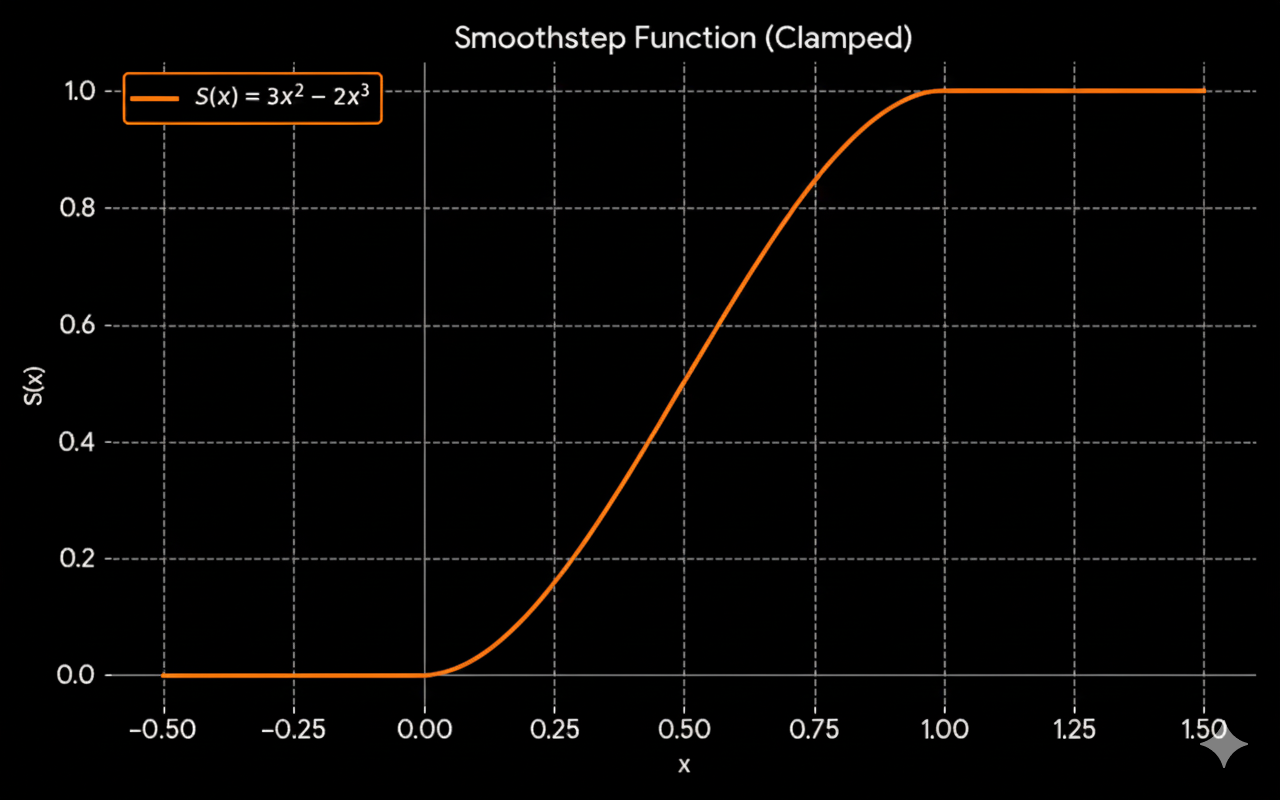

$$\\[5ex]$$ $$\begin{aligned} &\text{Now the next thing would be add the clamp function which is nothing else but a way to set up the bounds from } \\ &\text{where we want to number line to be usefull } \\ &\text{so this is a simple comparation between which is the maximum and which is the minimum between the result of } \\ &\text{the division and the bounds that we are going to set.}\\ \end{aligned}$$ $$\\[5ex]$$ $$ruler = \frac{x - a}{b - a}$$ $$\\[5ex]$$ $$t = \max(0, \min(1, \ ruler))$$ $$\begin{aligned} &\text{If we take the max and the min in order to clamp the bounds we are going to get this function } \\ &\text{but how we derive this function is a set of procedures that we could understand by identifying } \\ &\text{properties of polinomials. } \\ \end{aligned}$$ $$\\[5ex]$$

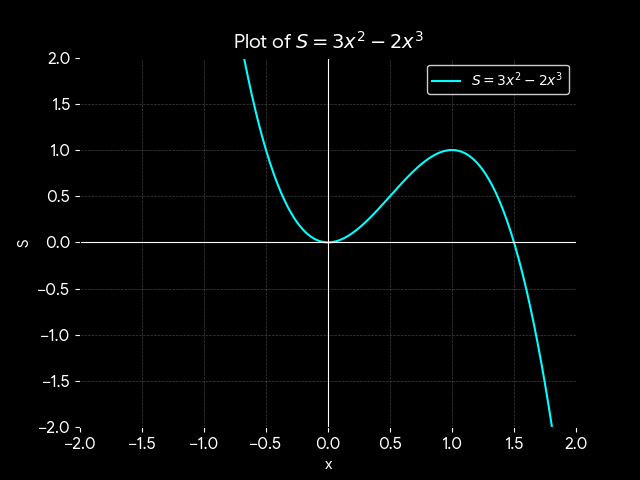

$$\\[5ex]$$ $$\text{smoothstep}(a, b, x) = S(a, b, x) = S = 3t^2 - 2t^3$$ $$\\[5ex]$$

$$\\[5ex]$$ $$\begin{aligned} &\text{Now the only thing that miss is how to derive the cubic polinomial, which is understand from which place}\\ &\text{this formula came from.}\\ \end{aligned}$$ $$\begin{aligned} &\textbf{1. The Constraints} \\ &\text{To derive the Smoothstep function for the interval } t \in [0,1], \\ &\text{we define four boundary conditions:} \\ \\ &\begin{aligned} &\text{Start Position:} & S(0) &= 0 \\ &\text{End Position:} & S(1) &= 1 \\ &\text{Start Velocity:} & S'(0) &= 0 \\ &\text{End Velocity:} & S'(1) &= 0 \end{aligned} \\ \\ &\textbf{2. The Cubic Derivation} \\ &\text{We begin with a general cubic polynomial:} \\ &S(t) = at^3 + bt^2 + ct + d \\ \\ &\text{First, we find its derivative:} \\ &S'(t) = 3at^2 + 2bt + c \\ \\ &\text{Applying the initial constraints } (t=0): \\ &S(0) = a(0)^3 + b(0)^2 + c(0) + d = 0 \implies d = 0 \\ &S'(0) = 3a(0)^2 + 2b(0) + c = 0 \implies c = 0 \\ \\ &\text{Applying the boundary constraints } (t=1): \\ &S(1) = a(1)^3 + b(1)^2 = 1 \implies a + b = 1 \\ &S'(1) = 3a(1)^2 + 2b(1) = 0 \implies 3a + 2b = 0 \\ \\ &\textbf{3. Solving the System} \\ &\text{From the velocity equation:} \\ &2b = -3a \implies b = -1.5a \\ \\ &\text{Substituting } b \text{ into the position equation:} \\ &a + (-1.5a) = 1 \\ &-0.5a = 1 \implies a = -2 \\ \\ &\text{Solving for } b: \\ &b = -1.5(-2) \implies b = 3 \\ \\ &\textbf{4. Final Result} \\ &\text{Plugging the constants back into the original polynomial, we arrive at:} \\ &S(t) = 3t^2 - 2t^3 \end{aligned}$$ $$\\[15ex]$$ $$\begin{aligned} &\text{Other way to derive this function is by lerping between two specific functions.} \\ \end{aligned}$$ $$a = t^2 \quad (Ease\ In)$$ $$b = 2t - t^2 \quad (Ease\ Out)$$ $$\\[5ex]$$ $$\text{lerp}(a, b, t) = a + t(b - a)$$ $$\\[5ex]$$ $$S(t) = \underbrace{t^2}_{a} + t(\underbrace{(2t - t^2)}_{b} - \underbrace{t^2}_{a})$$ $$\\[5ex]$$ $$S(t) = t^2 + t((2t - t^2) - t^2)$$ $$\\[5ex]$$ $$S(t) = t^2 + t(2t - 2t^2)$$ $$\\[5ex]$$ $$S(t) = t^2 + 2t^2 - 2t^3$$ $$\\[5ex]$$ $$S(t) = 3t^2 - 2t^3$$ $$\\[5ex]$$

$$\LARGE\text{Draw Cicle main Theory}$$

$$\begin{aligned} &\text{The things that we need to set from this moment on is how to place more mathematics in this field, }\\ &\text{cuz otherwise would be modified modify each single pixel by hand, and that is basically painting and drawing,}\\ &\text{and we are neither painting or drawing sooooo.., what?}\\ &\text{the way to make everything work here, is by making math happen, and the best way to make }\\ &\text{something like that happen, is by specifying equations and detail more functions that we could use to }\\ &\text{create more exemplifications of the goals that we had set }\\ \end{aligned}$$ $$\begin{aligned} &\text{the function that we are going to run a lot, and the one that we are going to use really much is going }\\ &\text{to be the frag functions the reason why is cuz we are currenctly operating on the plane,}\\ &\text{or more specific on a plane, and our plan is to do such thing.}\\ &\text{till we get a really good understanding of how signals work, and how we can make use of them, }\\ &\text{we need to understand how we can make use of the signals and the best place to do such thing is the PLANE! }\\ \end{aligned}$$ $$\begin{aligned} &\text{Now lets draw the easiest thing you could paint on a shader, like the easiest thing to imagine, }\\ &\text{lets draw a CIRCLE!!!}\\ &\text{So how we are going to do that, simple lets define what a circle really is, }\\ &\text{lets begin by understandingwhat defines a circle}\\ &\\[2ex] \end{aligned}$$ $$\begin{aligned} &\LARGE\textbf{Circle:}\\ &\text{A circle in theory are all the points where their distance to the center of the circle is less or equal than the radius }\\ \end{aligned}$$ $$\\[5ex]\\$$ $$\mathcal{C} = \{ (x, y) \in \mathbb{R}^2 \mid \sqrt{(x - h)^2 + (y - k)^2} \leq r \}$$ $$\\[5ex]\\$$ $$\begin{aligned} &\text{Center Coordinates:}\quad (h, k) \\ &\text{Arbitrary Point:}\quad (x, y) \\ &\text{Radius:}\quad r \\ \\ &\textbf{The Distance Formula} \\ &d = \sqrt{(x - h)^2 + (y - k)^2} \\ \\ &\textbf{The Geometric Constraint} \\ &d \leq r \implies \sqrt{(x - h)^2 + (y - k)^2} \leq r\\ \\ &\text{Which is the same thing as this:} \\ &(x - h)^2 + (y - k)^2 \leq r^2\\ \\ &\text{If the center is the origin:} \\ &(h, k) = (0, 0) \\ &\text{Then}: \\[0.8em] &(x - 0)^2 + (y - 0)^2 \leq r^2\\ \\ &x^2 + y^2 \leq r^2\\ \end{aligned}$$


fixed4 frag (PixelData i) : SV_Target
{

    // THIS CODE MEANS
    // HOW TO RUN THE PIXELS OF THE SCREEN.

    fixed4 colorWhite = float4(1,1,1,1); // Color white.
    fixed4 colorBlack = float4(0,0,0,1); // Color Black.

    float4 col = colorBlack;
    float2 uv =  i.uv;
	float2 coor = (uv * 2.0)  - 1.0;

    float2 center = float2(0.0, 0.0);

    float radius = 0.5;

    float2 coor2 = coor - center;

    if(length(coor2) <= radius)
    {
        col.x = 1.0;
    }

    col = fixed4(col.x, 0.0 , 0.0, 1.0);

    return col;
}

$$\begin{aligned} &\text{Lets set the color to the background to pure black}\\ \end{aligned}$$

    float4 col = colorBlack;

$$\begin{aligned} &\text{So lets explain the things that are happening here, which are the steps that we are following through this code.}\\ &\text{step by step we are going to understand how mathematics and computing are being evaluated}\\ \end{aligned}$$ $$\begin{aligned} &\text{the } \textbf{uv} \text{ states for all the points on the plane on } (x,y) \text{ representation}\\ &\text{but remember that this first } \mathbf{i.uv} \text{ is set up predetermine to the first cuadrant of }\\ &\text{the cartesian plane }\\ \end{aligned}$$

    float2 uv =  i.uv;
    float2 coordinateScale = (uv * 2.0) ;

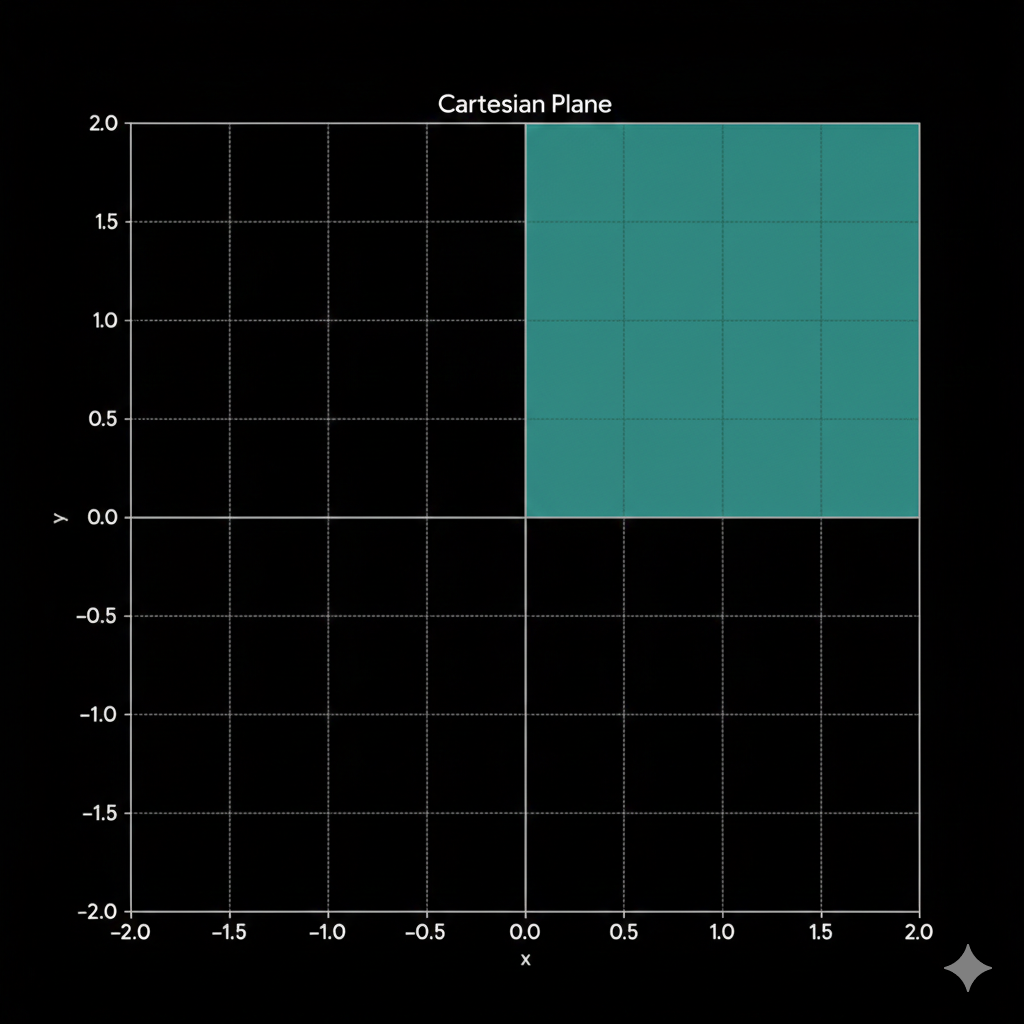

$$\begin{aligned} &\text{when we multiply by 2, what we are really doing is extending the dimension of the points that we are }\\ &\text{going to fit into this plane, so instead of fitting from}\ 0\ to\ 1\ \text{we are setting up use from }\\ &0\ to\ 2\\ &\text{}\\ \end{aligned}$$

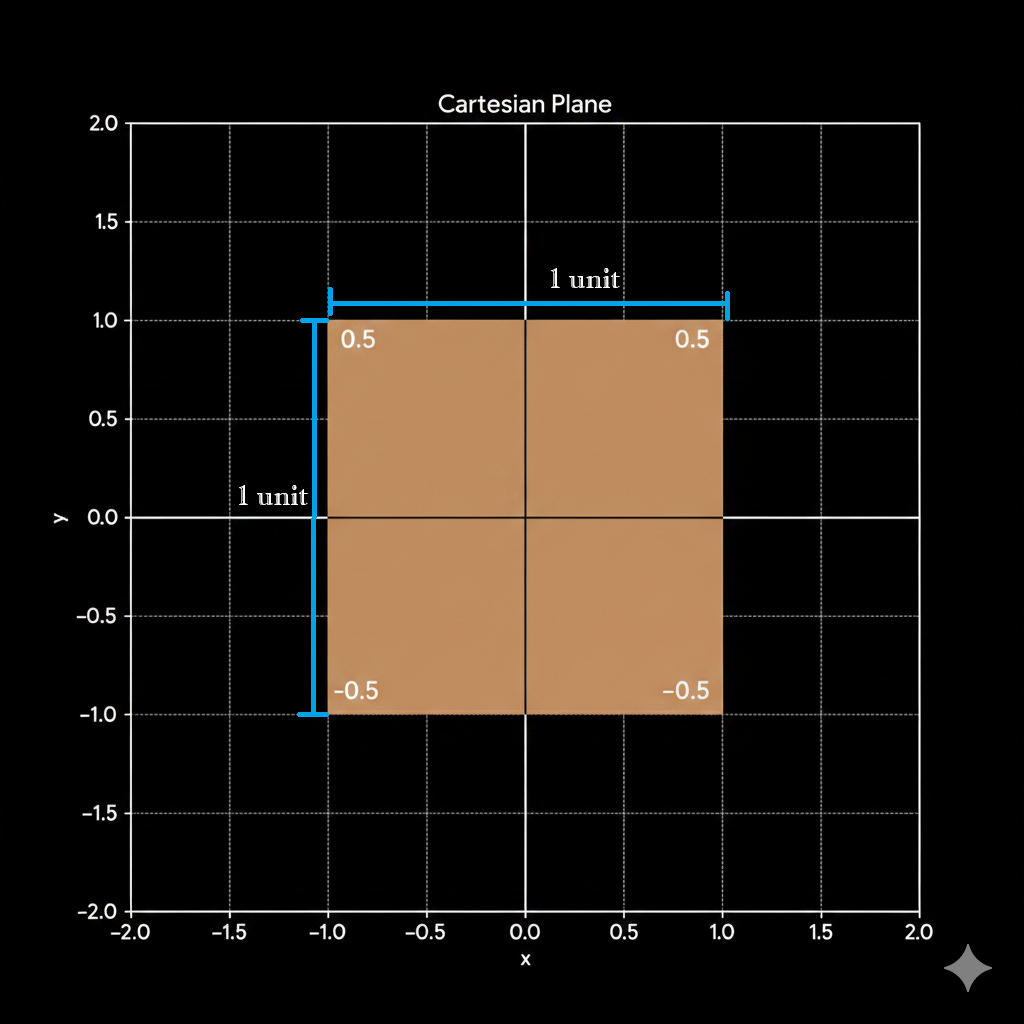

$$\begin{aligned} &\text{Now the that we had extend the size of the plane or more specifly the first cuadrant of the cartesian plane}\\ &\text{what we are going to do is center the origin in the middle of the plane, and to do such thing we just need}\\ &\text{to substract } -1.0 \text{ to the entire set of points so we end up with a general cartesian plane, on our} \\ &\text{PLANE!, that we could use to plot functions and geometric things.}\\ \end{aligned}$$


    float2 coordinateScale = (uv * 2.0)  - 1.0;


$$\begin{aligned} &\text{now what we are currently seeing in the plane is the yellowrange part of the previous cartesian plane this is }\\ &\text{the current plane we are seeing, on our screen, the yellow part would be the define space where we are going to }\\ &\text{output things on.}\\ &\text{}\\ \end{aligned}$$

    float2 center = float2(0.0, 0.0);

$$\begin{aligned} &\text{Now define the center of the circle that's going to be where the circle would be position, }\\ &\text{in this case the origin, so that means that our circle is position at: } \\ \\ &\mathcal{C} = (x, y) = (0, 0) \\ \\ &\mathcal{C}\; \xmapsto{\text{means}} \text{stands for the position of the circle }\\ &\text{}\\ \end{aligned}$$

    float radius = 0.5;

$$\large r \implies \text{radius}$$ $$\begin{aligned} &\text{Now in order to continue with the theory of the circle lets define the radius, which in this case is also}\\ &\text{the same as the max distance from the center of the circle, so every point with distance to the center }\\ &\text{less than the radius would represent that is part of the circle.}\\ \end{aligned}$$ $$\textbf{The Geometric Constraint} \\$$ $$d \leq r \implies \sqrt{(x - h)^2 + (y - k)^2} \leq r\\$$

$$\\[7ex]\\$$ $$\begin{aligned} &\text{some other way to specify in code the substractions inside the root as the following}\\ \end{aligned}$$ $$ float2\; coor2 = float2((x - h)\ ,\ (y - k))$$

    float2 coor2 = coor - center;

$$coor2\; =\; \mathbf{C_2}\ =\ \mathbf{P} - \mathbf{C}\ =\ \begin{pmatrix} x - h \\ y - k \end{pmatrix}$$ $$\\[5ex]\\$$ $$coor2\; =\;(x - h, y - k)\ =\ (x, y) - (h, k)$$ $$\\[5ex]\\$$ $$coor2\; =\;\mathbf{C_2}\ =\ \mathbf{P} - \mathbf{C} $$

if(length(coor2) <= radius)
{
    col.x = 1.0;
}

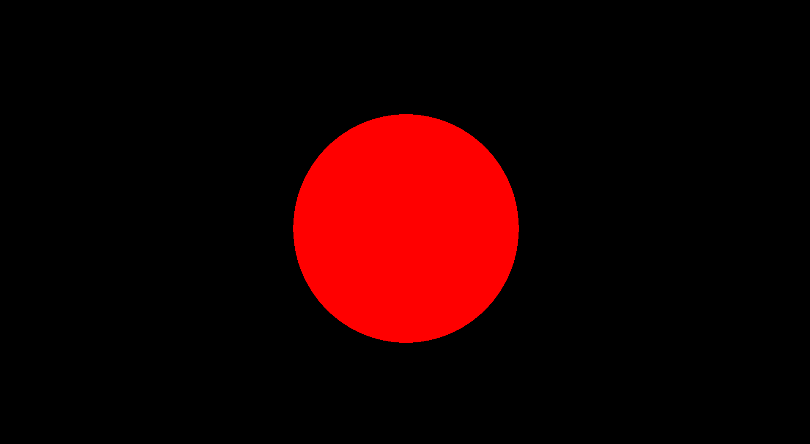

$$\begin{aligned} &\text{The operation that we are going to do now would be evaluate the points so they fulfill }\\ &\text{the condition, and if the point fulfill then is when we are going to know that the point must }\\ &\text{be colored, the condition in general mathematics terms is the next one:}\\ \end{aligned}$$ $$d \implies length(coor2) $$ $$\\[4ex]\\$$ $$\textbf{The Distance Formula} \\$$ $$d = \sqrt{(x - h)^2 + (y - k)^2} \\$$ $$\\[4ex]\\$$ $$d \leq r \implies \sqrt{(x - h)^2 + (y - k)^2}\; \leq\; r\\$$ $$\\[4ex]\\$$ $$d \leq r \implies \sqrt{\mathbf{(C_2)^2}}\; \leq\; r \ =\ \sqrt{\mathbf{P^2} - \mathbf{C^2}}\; \leq\; r $$ $$\\[4ex]\\$$ $$\begin{aligned} &\text{So if the condition of the previous statement is meet then the output would be this colored red }\\ \end{aligned}$$

    col = fixed4(col.x, 0.0 , 0.0, 1.0);

    return col;
