fixed4 frag (PixelData i) : SV_Target
{

float2 uv =  i.uv ;

float4 colorWhite = float4(1,1,1,1); // Color white.
float4 colorBlack = float4(0,0,0,1); // Color Black.


float2 coordinateScale = (uv * 2.0)  - 1.0;

float2 size = float2(0.5 ,0.5);

float2 screenSpace = coordinateScale;

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

float sdf =  ( sign(disHypotenuse) < 0 && screenSpace.y > 0 && screenSpace.x > 0 ) ? 1.0 : 0.0 ;

float4 col = colorBlack;

col = fixed4(sdf, sdf, sdf, 1.0);

}

$$\begin{aligned} &\text{All the thinsg that we had done since are very clear, the steps that we must take into consideration ahead}\\ &\text{are going to be the next ones, there are things that we had already define like always from the beginning of this }\\ &\text{series.}\\ \end{aligned}$$

float2 uv =  i.uv ;
float4 colorWhite = float4(1,1,1,1); // Color white.
float4 colorBlack = float4(0,0,0,1); // Color Black.

float2 coordinateScale = (uv * 2.0)  - 1.0;

$$\begin{aligned} &\text{Everything till this points looks very straight forward, and all the information presented here is clear, so}\\ &\text{lets continue by more steps that we could use to clarify to understand more concepts .}\\ \end{aligned}$$

float2 size = float2(0.5 ,0.5);

float2 screenSpace = coordinateScale;

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

float sdf =  ( sign(disHypotenuse) < 0 && screenSpace .y > 0 && screenSpace.x > 0 ) ? 1.0 : 0.0 ;


$$\begin{aligned} &\text{Lets explain the meaning of each single of this lines of code, and how they work combine to represent information.}\\ &\text{The assignation of vales on the first two lines of code is really straight forward.}\\ \end{aligned}$$

float2 size = float2(0.5 ,0.5);

float2 screenSpace = coordinateScale;


$$\begin{aligned} &\text{the things that we need to describe here is the formula for the line, that we could represent is the information }\\ &\text{is discribe in this particular way, the representation of the dot product, a formula that we need to review throughfully }\\ &\text{cuz its meaning could be reorganize multiple times along the theories many many many times. }\\ \end{aligned}$$

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

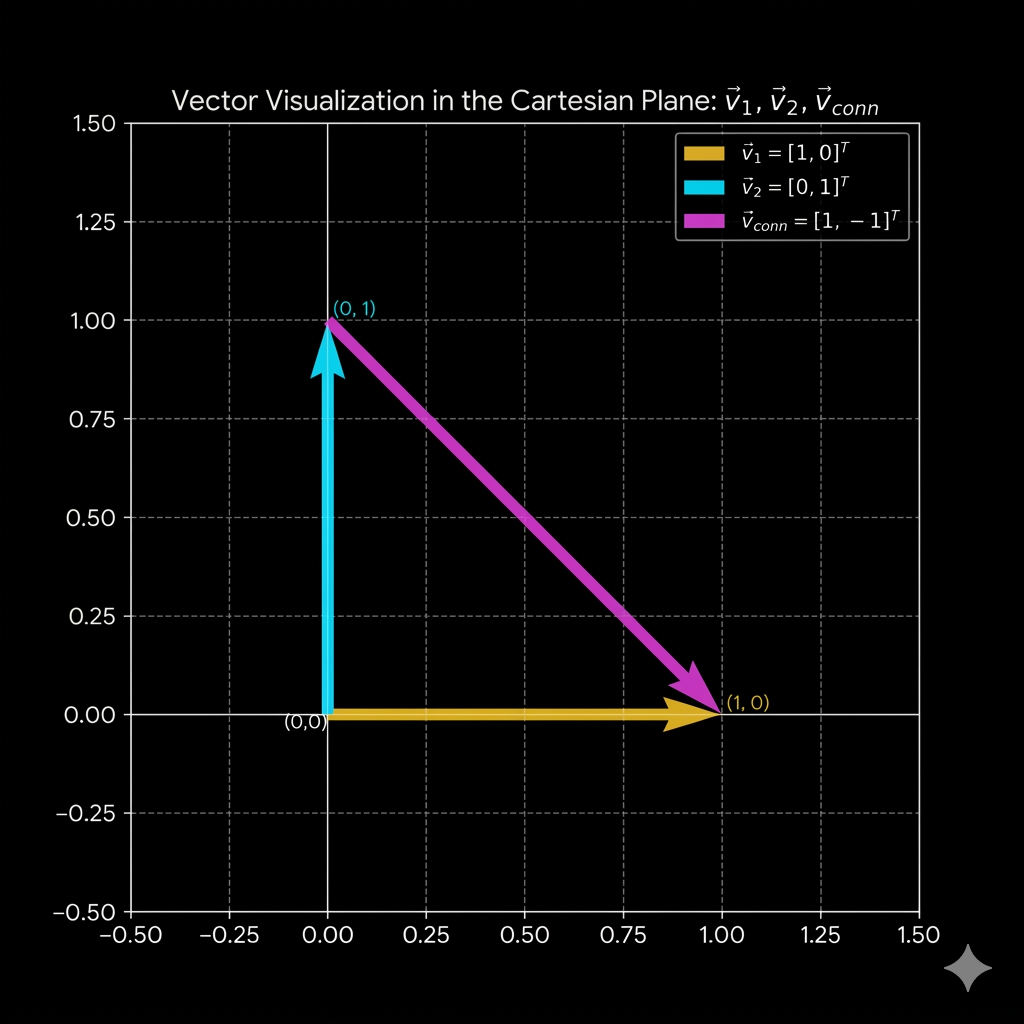

$$\begin{aligned} &\text{The idea that we need to represent is how to draw a right triangle, so once we had define what a right triangle is we can continue}\\ &\text{reprenseting more values.}\\ &\text{So whats is a right triangle, a right triangle is a triangle form with two vectors, that are perpendicular to each other, with another }\\ &\text{vector connecting them, lets place this vectors in the origin for more clarity.}\\ \end{aligned}$$

$$\begin{aligned} &\text{This looks like a triangle to me, so the idea that we need to clarify is how we could get the points inside this triangle, }\\ &\text{ like literally all the points, how we are able to identify which points are going to be inside and outside of the triangle}\\ &\text{To be able to do that is going to be necessary for us to identify the borders, why cuz if the point is within the borders}\\ &\text{then we'll be able to comprehend which point lay or not in the section, or triangle.}\\ &\text{reprenseting more values.}\\ \end{aligned}$$

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

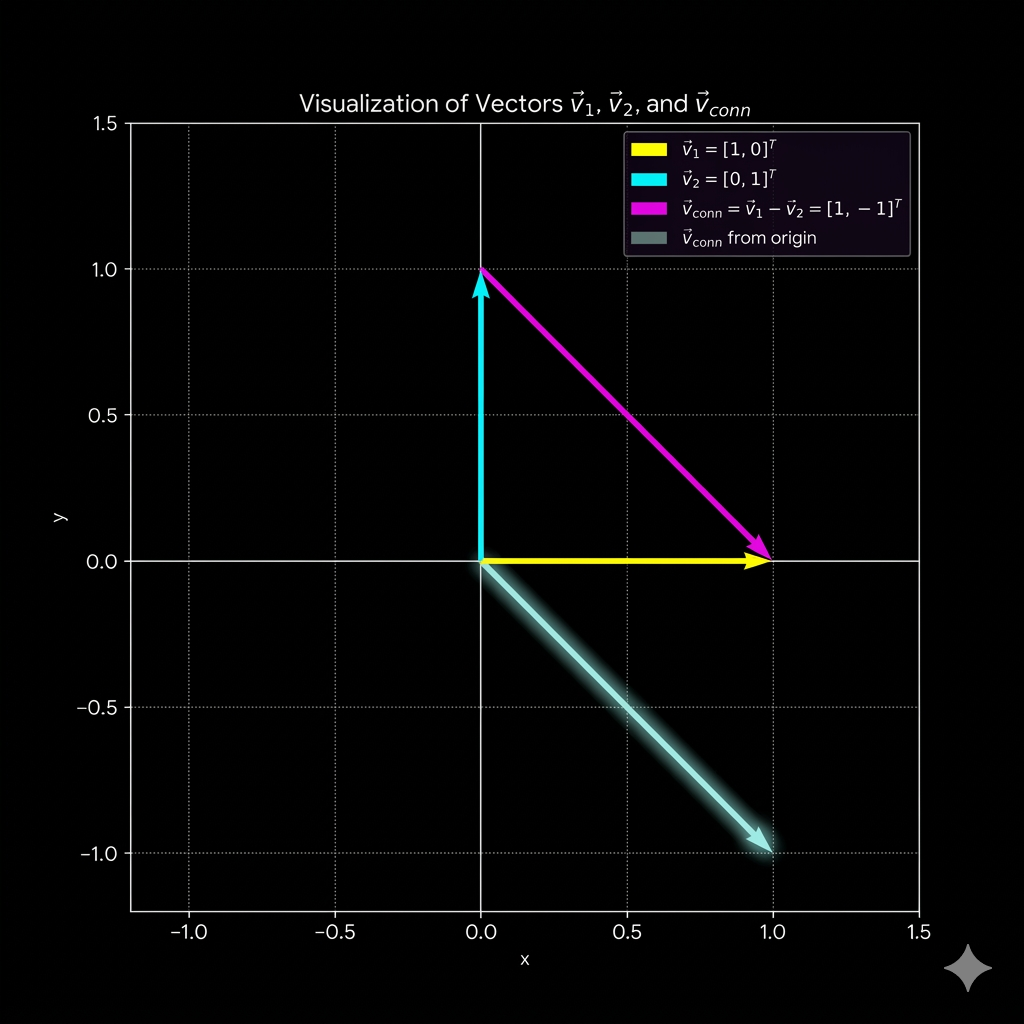

$$\begin{aligned} &\text{so the first things that we need to identify is which points lay on each side of the hypothenuse, }\\ &\text{to do this we need to ask, which are the vectors that make out the perpendiculars sides of the triangle}\\ &\text{and how we position this vectors in the axis of the cartesian plane is the key factor here}\\ &\text{}\\ \end{aligned}$$ $$\vec{v}_1 = \begin{bmatrix} 1 \\ 0 \end{bmatrix}$$ $$\\[5ex]\\$$ $$\vec{v}_2 = \begin{bmatrix} 0 \\ 1 \end{bmatrix}$$ $$\\[5ex]\\$$ $$\vec{v}_{conn} = \vec{v}_1 - \vec{v}_2$$ $$\\[5ex]\\$$ $$\vec{v}_{conn} = \begin{bmatrix} 1 \\ 0 \end{bmatrix} - \begin{bmatrix} 0 \\ 1 \end{bmatrix} = \begin{bmatrix} 1 \\ -1 \end{bmatrix}$$ $$\\[5ex]\\$$ $$\begin{aligned} &\text{but if we plot this three vectors then we are going to get the next thing.}\\ \end{aligned}$$

$$\begin{aligned} &\text{so the idea would be to identify what can we do with this information to make a representation of the ideas}\\ &\text{that we want to make reality, which are the key ingredients that we need to set up in this field.}\\ &\text{lets begin with the most difficult thing to define between the three, lets define the hipothenuse.}\\ &\text{what we need to do with the hypothenusa, from the hypothenusa, what defines a hypothenusa? }\\ &\text{very important questions about the hypothenusa }\\ &\text{but overall from which place we can detail its existence.}\\ \end{aligned}$$ $$\text{RandomPoint =}\ \ (x, y)$$ $$\text{PointInTheLine =}\ \ (x_1, y_1)$$ $$\text{The slope of the line is define by} \ \ m$$ $$m = \frac{y - y_1}{x - x_1}$$

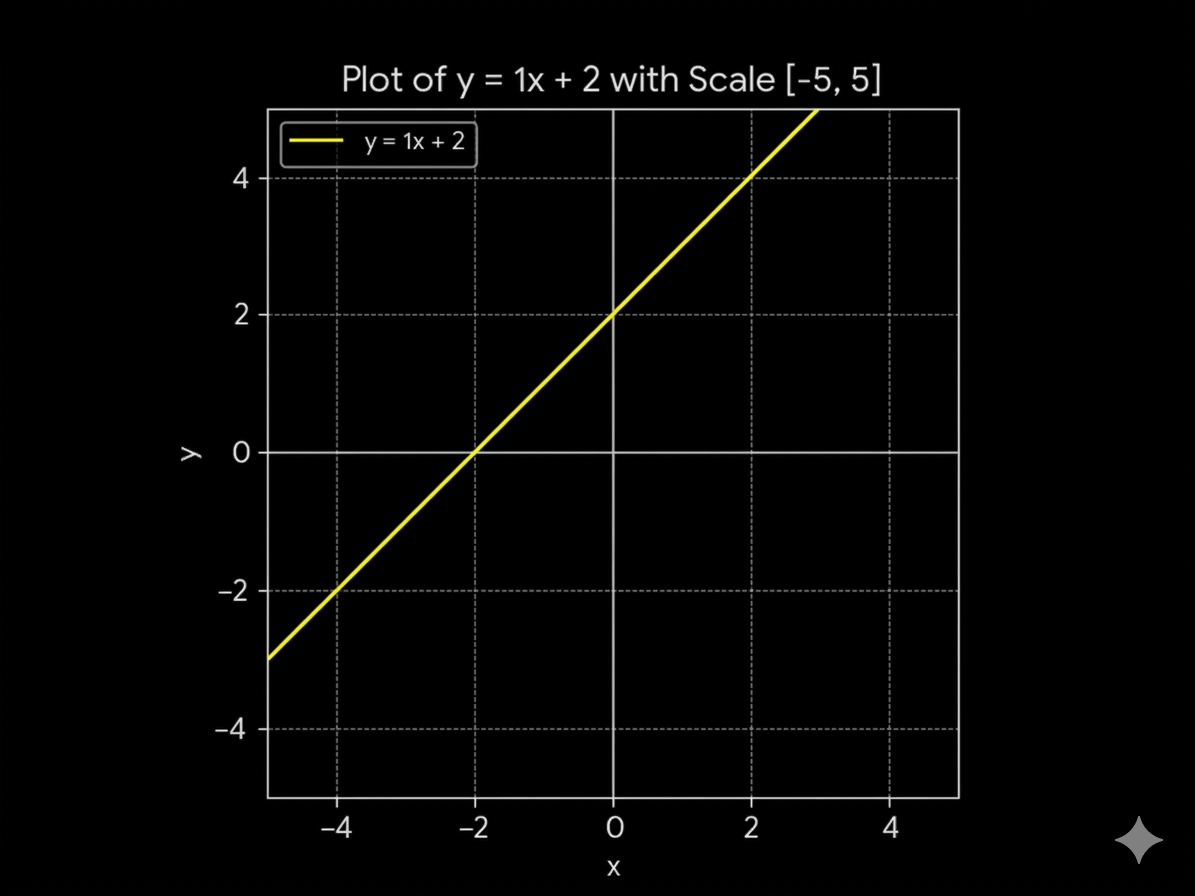

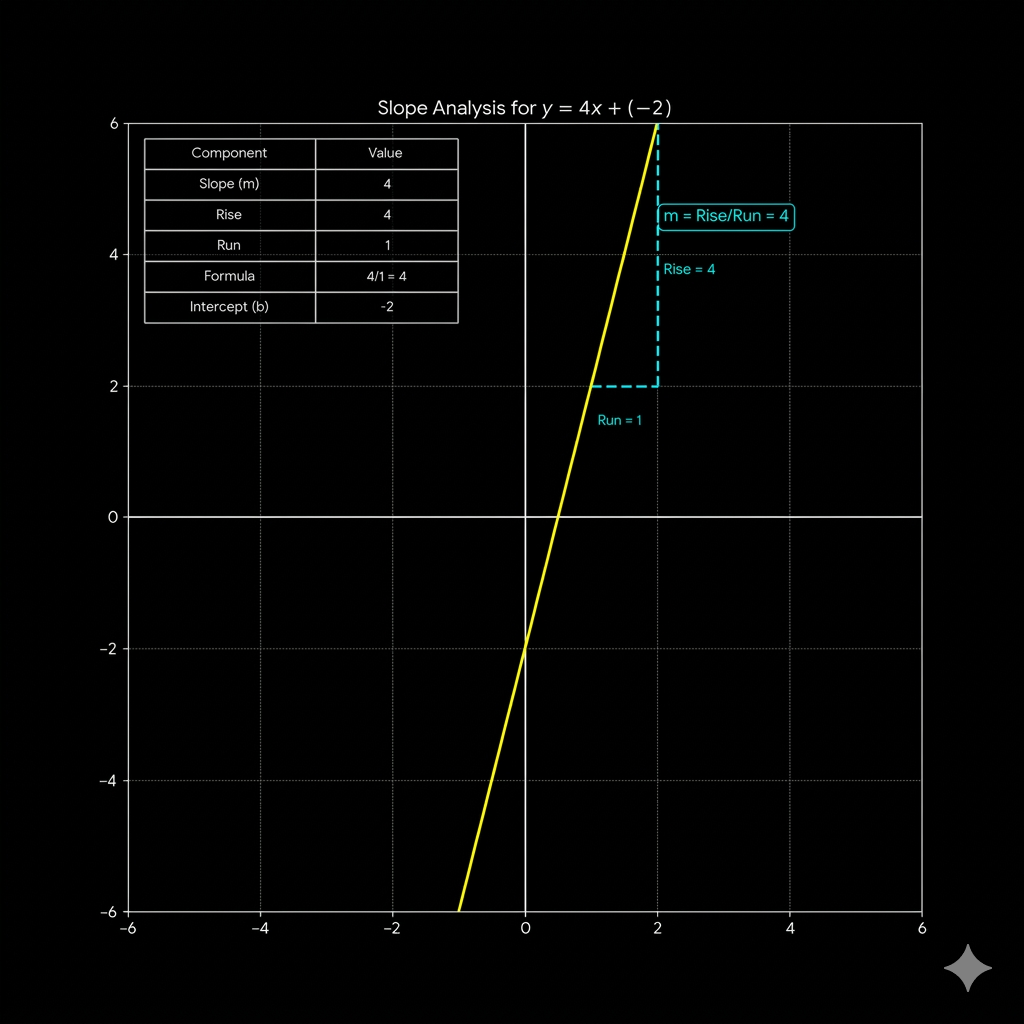

$$\\[5ex]$$ $$y = mx + b$$ $$\\[5ex]$$ $$\begin{aligned} &\text{This is the conventional idea of a function, you get a value for each number of the real numbers}\\ &\text{in this case the real numbers are represented by the cartesian plane x axis.}\\ \end{aligned}$$ $$\\[5ex]$$ $$\begin{aligned} &\text{So what the values represent in this function?, the idea is to clarify what does each value do.}\\ &\text{what does the values of the constants that made up this function do.}\\ \end{aligned}$$ $$\text{The slope of the line is define by} \ \ m$$ $$\begin{aligned} &\text{So what is a slope, a slope is the reason of change, of the "x" values in the "y" values}\\ &\text{the constant that made up this function.}\\ \end{aligned}$$

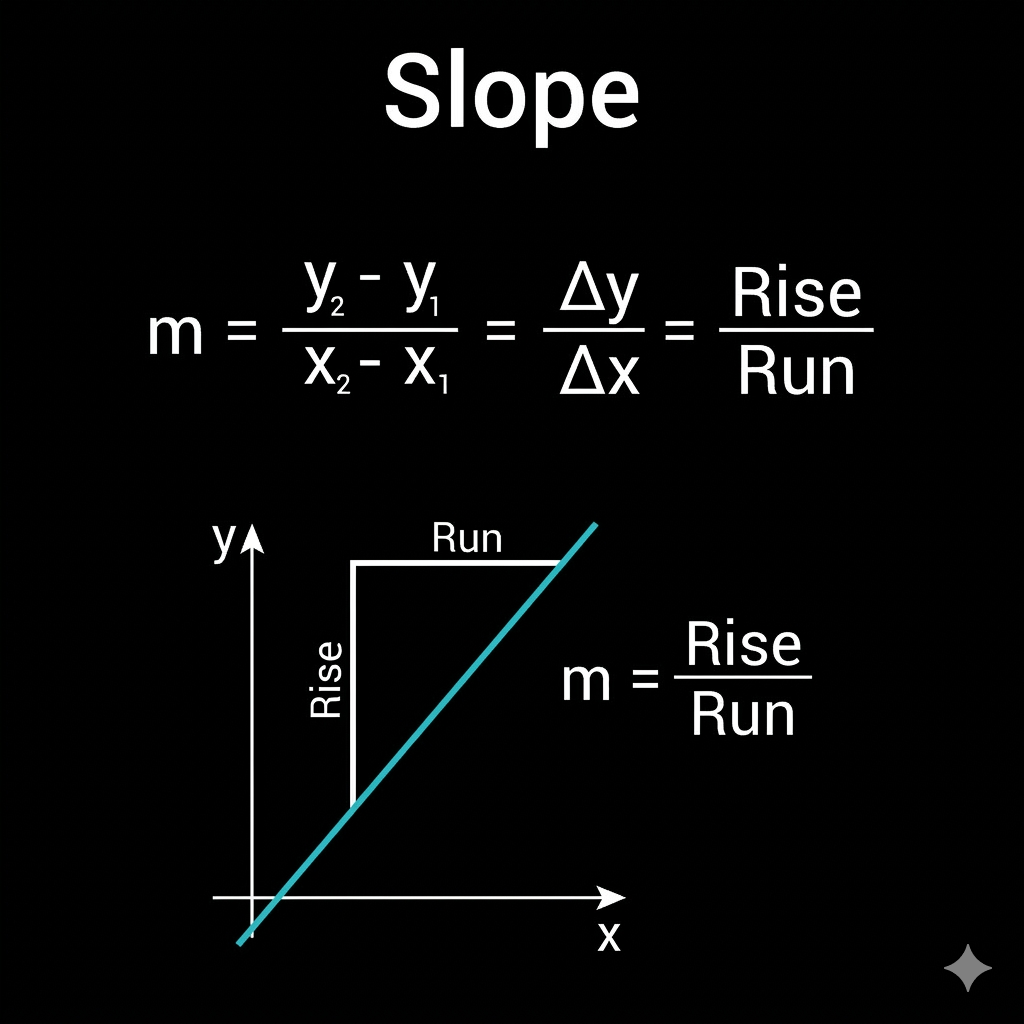

$$\begin{aligned} &\text{The idea with the m slope, is to make the "y" values be "m" times the "x"}\\ &\text{which is the same idea as modify the space, of the real numbers to make it increment or}\\ &\text{descrease its values, like an scalation of the values, but for all the values in the real numbers}\\ \end{aligned}$$ $$\begin{aligned} &\text{The second element that we need to define is the "b", which is the point where we want the}\\ &\text{line to start, only in this particular representation of the line, it works like this, the }\\ &\text{variable "b", represent from which positin of the input "x" we want the escalations to begin }\\ \end{aligned}$$ $$\begin{aligned} &\text{one particularity of this representation of the line, is that if you want to get the values}\\ &\text{of the line to cut always both of the axis, in the same point for both the "x" and the "y" axis }\\ &\text{at the same time, the value of the m = 1}\\ \end{aligned}$$ $$\\[5ex]$$ $$y = mx + b$$ $$\\[5ex]$$ $$m = 1$$ $$\\[5ex]$$ $$y = ( 1) x + b$$ $$\\[5ex]$$ $$if \ x = 0 \ \& \ b = 2$$ $$\\[5ex]$$ $$y = ( 1) (0) + 2$$ $$\\[5ex]$$ $$y = 2$$ $$\text{cuts the line in the Y axis in }2$$ $$\\[10ex]$$ $$and\ if \ y = 2 \ \& \ b = 2$$ $$\\[5ex]$$ $$y = ( 1) x + 2$$ $$\\[5ex]$$ $$y - 2 = ( 1) x $$ $$\\[5ex]$$ $$y = 0$$ $$\\[5ex]$$ $$ 0 - 2 = ( 1) x $$ $$\\[5ex]$$ $$ x = - 2 $$ $$\text{cuts the line in the X axis in }-2$$ $$\\[5ex]$$

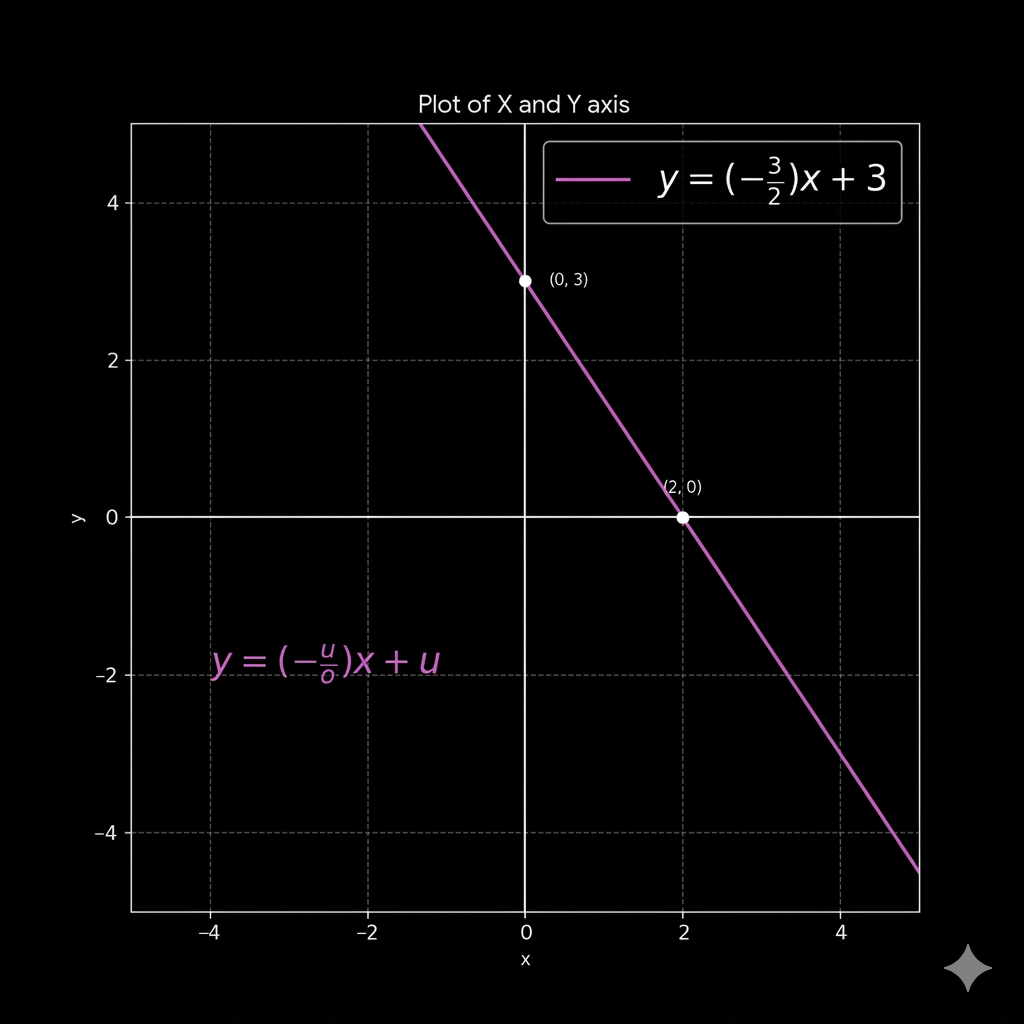

$$\begin{aligned} &\text{Something that you could also do, is get the specific points where you want the line to cut the axis}\\ &\text{by following this formula.}\\ &\text{}\\ \end{aligned}$$ $$y = \left( -\frac{u}{o} \right) x + u$$ $$\\[5ex]$$ $$\text{now if we want to find the } u \\ $$ $$\\[5ex]$$ $$y = m(0) + u$$ $$\\[5ex]$$ $$y = u$$ $$\\[5ex]$$ $$\text{now if we want to find the } o \\ $$ $$\\[5ex]$$ $$y = 0$$ $$\\[5ex]$$ $$x = o \xrightarrow{\text{point to find }} \ (o, 0)$$ $$\\[5ex]$$ $$0 = m(o) + u \\ \\$$ $$\\[5ex]$$ $$-u = mo \\ \\$$ $$\\[5ex]$$ $$m = -\frac{u}{o}$$ $$\\[5ex]$$ $$\text{and thats how we could make the next thing to be possible} \\ $$ $$y = \left( -\frac{u}{o} \right) x + u$$ $$\\[5ex]$$ $$\text{In the next example:}$$ $$o = 2 $$ $$u = 3 $$

$$\begin{aligned} &\text{This would be the first form to represent the line, which is the most common, and a list-ingy}\\ &\text{and single computer processor, to think about this way to express the line.}\\ &\text{descrease its values, like an scalation of the values, for all the values in the real numbers}\\ \end{aligned}$$ $$\begin{aligned} &\text{now there is a second way to make the representation of the line, and it would be by using }\\ &\text{VECTORS, a structured of thought that is a little bit more computational parallel multiple core, }\\ &\text{processors, rather than a expression more listy single processor thinking. }\\ &\text{and the idea is based entirely on this expression}\\ \end{aligned}$$ $$\\[5ex]$$ $$0 = \mathbf{n} \cdot \mathbf{p}$$ $$\\[5ex]$$ $$\begin{aligned} &\text{Yes, i am telling you that the equation of the line could be derived from the dot product.}\\ &\text{and its pretty simple to imagine .}\\ \end{aligned}$$ $$\\[5ex]$$ $$\mathbf{n} = (a, \, b) $$ $$\\[3ex]$$ $$\mathbf{p} = (x, \, y) $$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} = (a \cdot x) + (b \cdot y)$$

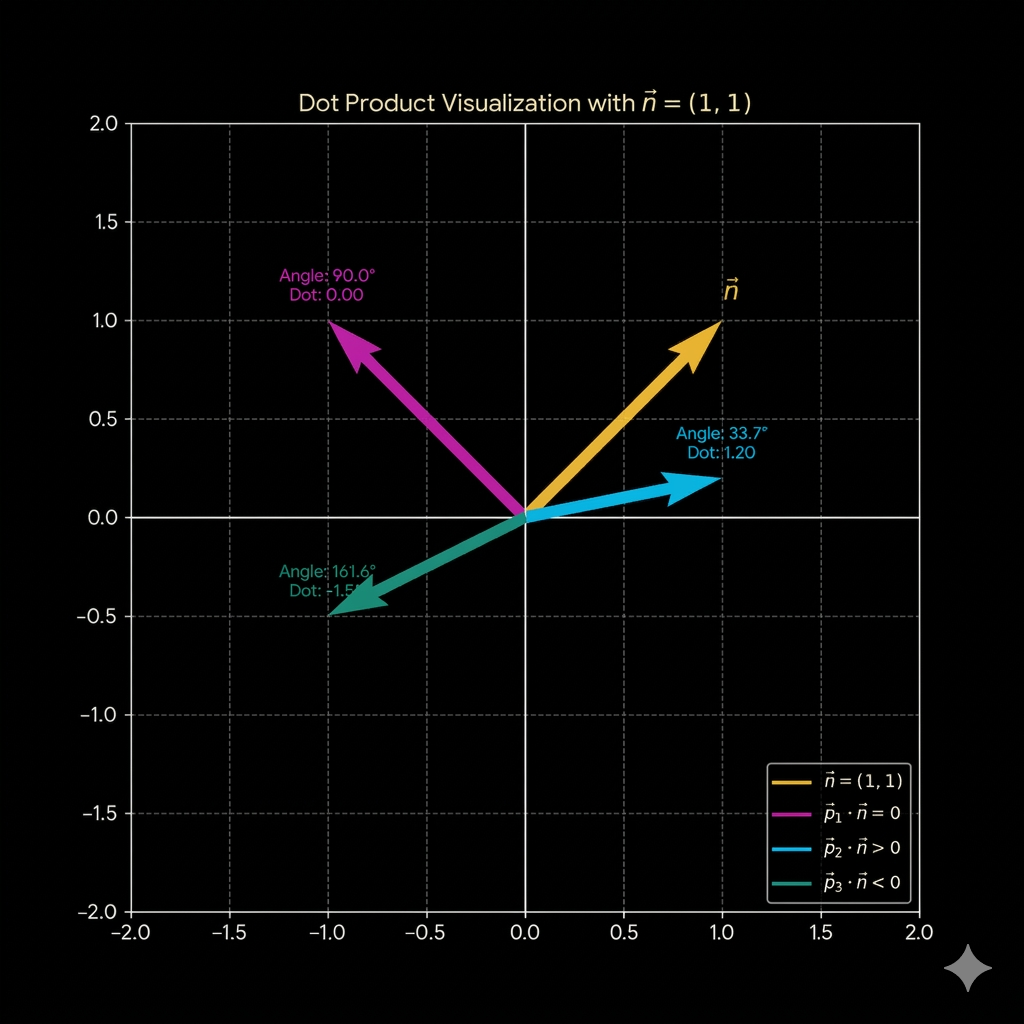

$$\\[5ex]$$ $$\begin{aligned} &\text{So the main idea when you take the dot product is that it would return 3 type of things,}\\ &\text{and its pretty simple to imagine .}\\ \end{aligned}$$ $$\begin{aligned} &\text{Points where \ } \mathbf{n} \cdot \mathbf{p} = 0 \ \| \text{the angle between these two vectors is exactly 90 }\degree\\ &\text{Points where \ } \mathbf{n} \cdot \mathbf{p} > 0 \ \| \text{the angle between these two vectors is lesser than 90)\degree}\\ &\text{Points where \ } \mathbf{n} \cdot \mathbf{p} < 0 \ \| \text{the angle between these two vectors is greater than 90)\degree }\\ \end{aligned}$$ $$\begin{aligned} &\text{But also this representation, also contains a more deeper meaning, on regards of how the line is draw }\\ &\text{for example on this same ideas we can identify this concepts like this.}\\ \end{aligned}$$ $$\begin{aligned} &\text{Points where \ } \mathbf{n} \cdot \mathbf{p} = 0 \ \| \text{The coordinates (x,y) are part of the line }\\ &\text{Points where \ } \mathbf{n} \cdot \mathbf{p} > 0 \ \| \text{The coordinates (x,y) reflect on the n vector)}\\ &\text{Points where \ } \mathbf{n} \cdot \mathbf{p} < 0 \ \| \text{The coordinates (x,y) do not reflect on the n vector)}\\ \end{aligned}$$ $$\begin{aligned} &\text{which are litterally the same thing, just visualize from an another angle, jaja jokes.}\\ &\text{get it is like doing the explanation of the first things, but is not the first thing cuz it not on angles.}\\ \end{aligned}$$

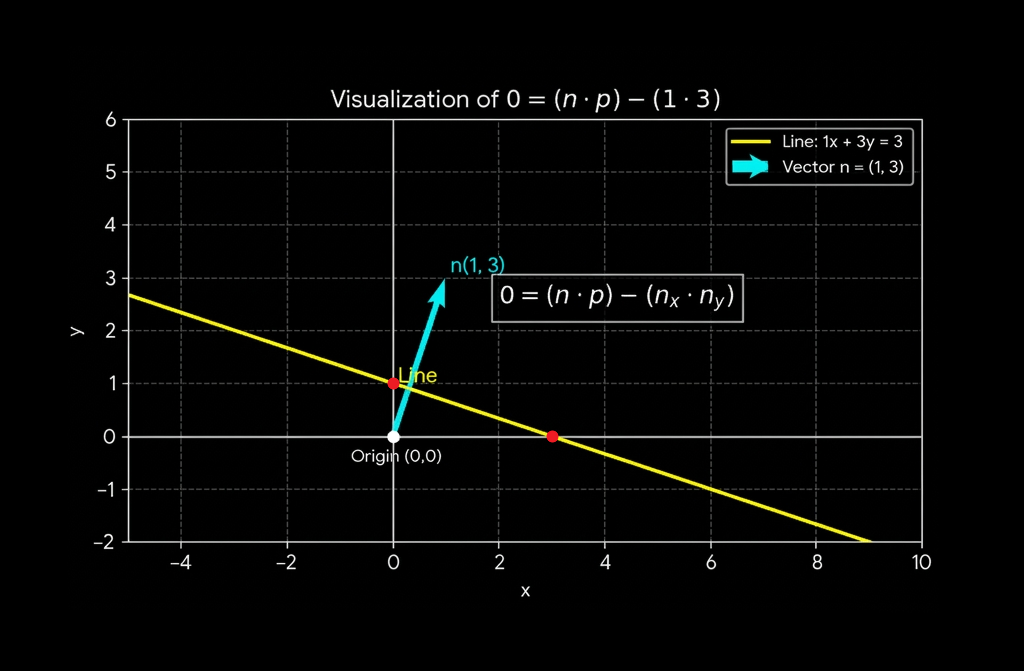

$$\begin{aligned} &\text{Now one particularity that we could make here to happen, is the offset, but offset from what.}\\ &\text{in this case, you know what would be really awesome, to make the line be moved to the position we }\\ &\text{want it to be translated to, so the offset in this case would be the way we could make the line to be }\\ &\text{translated to in the direction of the vector director}\\ \end{aligned}$$ $$\\[3ex]$$ $$\mathbf{n} = (a, \, b) $$ $$\\[3ex]$$ $$\mathbf{p} = (x, \, y) $$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} - \mathbf{offset} = (a \cdot x) + (b \cdot y) - OFFSET $$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} - \mathbf{offset} = (a \cdot x) + (b \cdot y) - (\mathbf{|n|} * d) $$ $$\\[3ex]$$ $$OFFSET = \mathbf{distance\ from\ the\ origin} = \mathbf{|n|} \cdot d $$ $$\\[3ex]$$ $$OFFSET = \mathbf{|n|} \cdot d $$ $$\\[3ex]$$ $$d = \text{literally the distance we want to set the line from the origin} $$ $$\\[3ex]$$ $$OFFSET > \mathbf{0} \longrightarrow \text{line move direction of the vector} $$ $$\\[3ex]$$ $$OFFSET < \mathbf{0} \longrightarrow \text{line move opposite the direction of the vector} $$

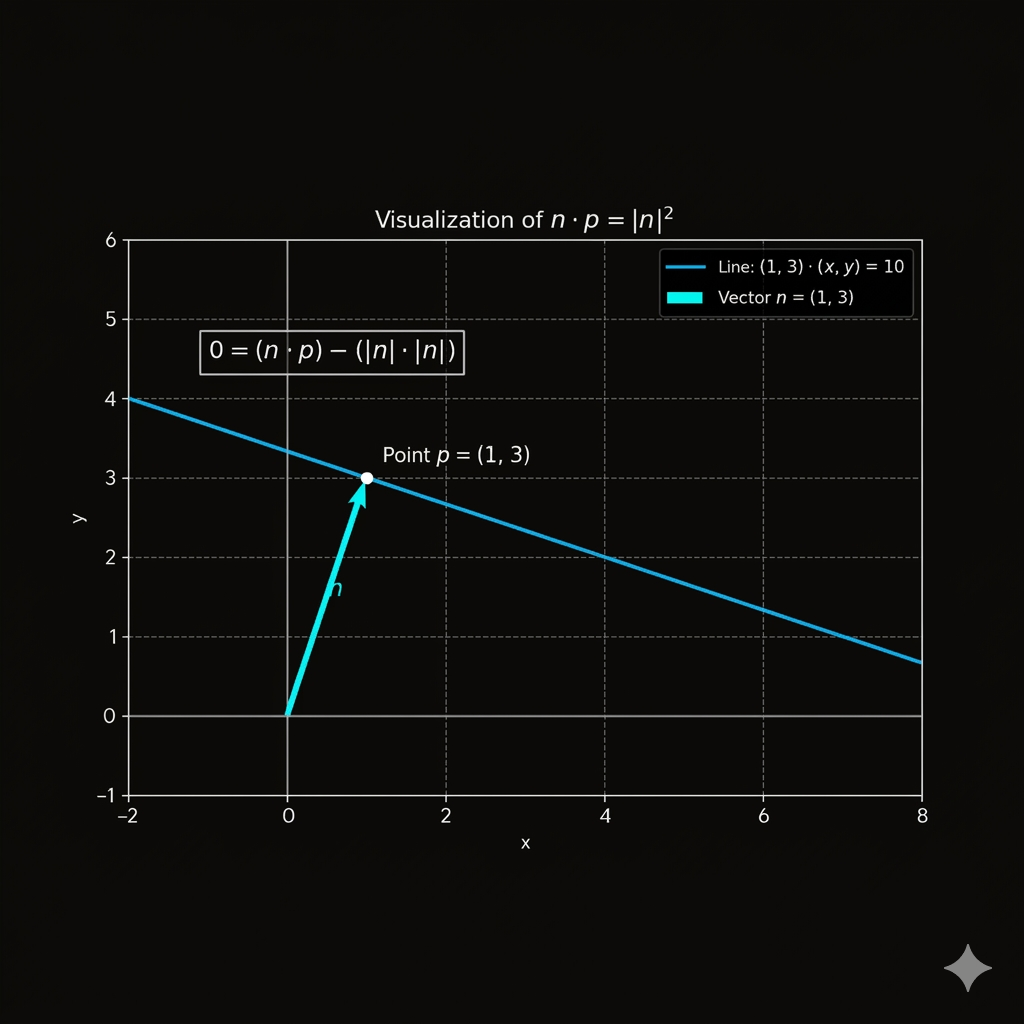

$$\begin{aligned} &\text{Now one property that is really interesting, is that if you multiply the values of the }\\ &\text{magnitude of the vector director square }, \mathbf{||n||^2},\ \text{you are going to get the line position}\\ &\text{directly over the point of the vector director. }\\ \end{aligned}$$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} - \mathbf{offset} = (a \cdot x) + (b \cdot y) - (\mathbf{|n|} * \mathbf{|n|}) $$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} - \mathbf{offset} = (a \cdot x) + (b \cdot y) - (\mathbf{|n|}^2) $$ $$\\[3ex]$$

$$\begin{aligned} &\text{Another particularity of this property, is that if you want to get the line to cut particular points}\\ &\text{of the axis, it'll be necessary to set the values of the vector director line like this. }\\ \end{aligned}$$ $$\\[3ex]$$ $$\mathbf{n} = (a, \, b) $$ $$\\[3ex]$$ $$\mathbf{p} = (x, \, y) $$ $$\\[3ex]$$ $$offset = (a * b) $$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} - \mathbf{offset} = (a \cdot x) + (b \cdot y) - (a * b) $$ $$\\[3ex]$$ $$\text{the,}\quad \mathbf{a}\quad \text{would cut the |Y axis } $$ $$\text{the,}\quad \mathbf{b}\quad \text{would cut the |X axis } $$


float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

float sdf =  ( sign(disHypotenuse) < 0 && screenSpace.y > 0 && screenSpace.x > 0 ) ? 1.0 : 0.0 ;

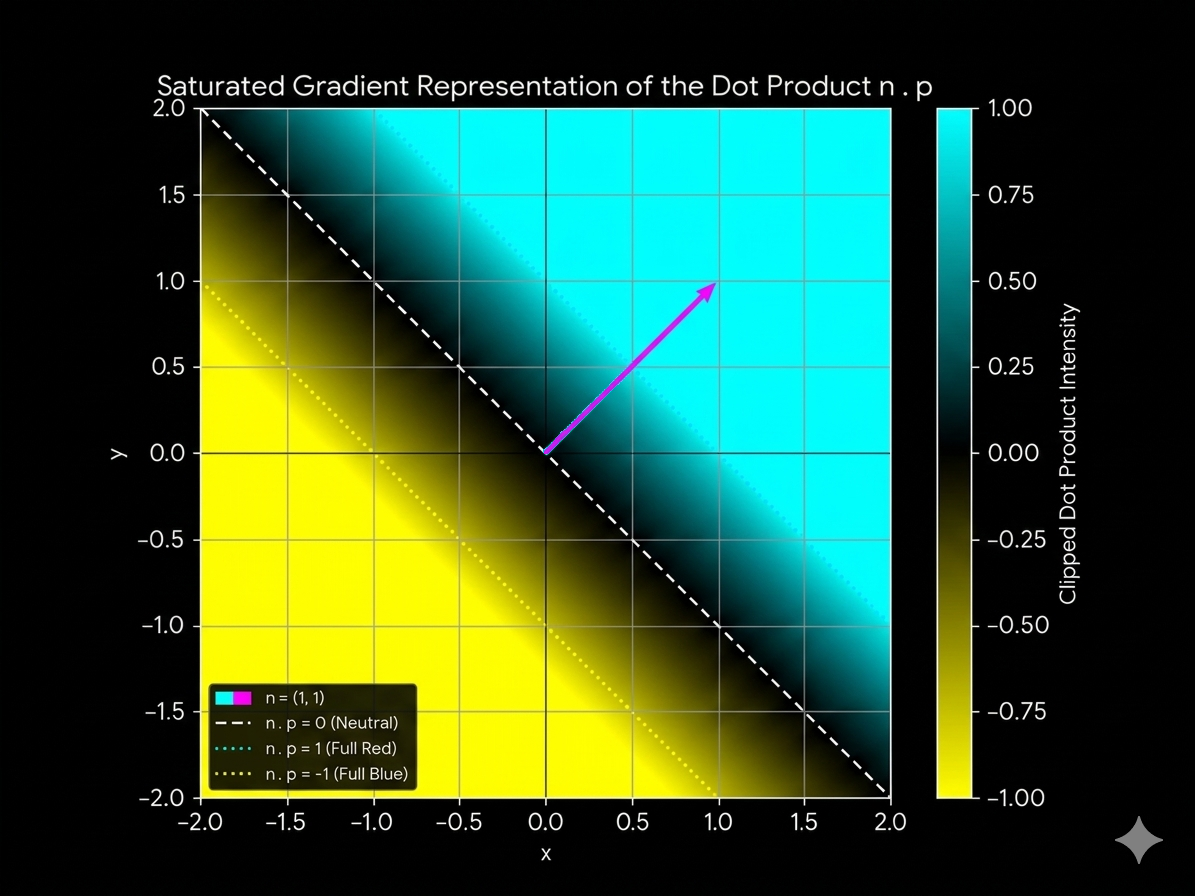

$$\\[5ex]$$ $$\begin{aligned} &\text{from this point on when we visualize the equation for the line in the 2d space, it should be really simple }\\ &\text{and clear to image, what does the output of this specific set of values represent, and what we can do with }\\ &\text{them to get information from them. }\\ \end{aligned}$$

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

$$\begin{aligned} &\text{In this case the information according the formula for the line would be represented like this.}\\ \end{aligned}$$ $$\mathbf{n} = (a, \, b) $$ $$\\[3ex]$$ $$\mathbf{p} = (x, \, y) $$ $$\\[3ex]$$ $$\mathbf{n} \cdot \mathbf{p} - \mathbf{offset} = (a \cdot x) + (b \cdot y) - (a * b) $$ $$\\[3ex]$$ $$ dot(size,\ screenSpace\ )\ -\ (size.x\ *\ size.y)\ = \ \mathbf{n} \cdot \mathbf{p} - \mathbf{offset} $$ $$\\[3ex]$$ $$ dot(size,\ screenSpace\ )\ -\ (size.x\ *\ size.y)\ = (a \cdot x) + (b \cdot y) - (a * b) $$ $$\\[3ex]$$ $$\begin{aligned} &\text{with this information we can get the positive and negative side of the line, that we could use to identify }\\ &\text{if the points lays in the screen space lays in the inside or outside of the triangle. }\\ &\text{is rather a representation of different theories that converge into something that works for us.}\\ &\text{or more over, not just work fur us, but help us get the things that we want.}\\ \end{aligned}$$


float sdf =  ( sign(disHypotenuse) < 0 && screenSpace.y > 0 && screenSpace.x > 0 ) ? 1.0 : 0.0 ;


$$\begin{aligned} &\text{In this case we are going to be able to make a recognize or present a set of values that we could use to }\\ &\text{represent a triangle.}\\ &\text{in this case the triangle is position in the 1 cuadrant of the cartesian plane, and the place where we are }\\ &\text{going to evaluate the points, create limits to make the motions run. and obtian results.}\\ \end{aligned}$$ $$\\[3ex]$$ $$\begin{aligned} &\text{So what does this line does, lets explain all the evaluations that define what is really happening here.}\\ &\text{in this case the evaluations are really simple to make, the only question that we got to keep in mind is... }\\ &\text{Which characteristics define the points inside the triangle.}\\ \end{aligned}$$ $$\\[3ex]$$

$$\\[3ex]$$ $$\begin{aligned} &\text{lets define this characteristics :}\\ \end{aligned}$$ $$ trianglePoint > 0.0 $$ $$\\[3ex]$$ $$trianglePoint = [\mathbf{(x, y)} \longrightarrow \mathbf{PlanePoint}] > 0.0 \quad $$ $$\\[3ex]$$ $$\text{Cuz the triangle is in the positive quadrant the point is always positive.} $$ $$\\[5ex]$$ $$\begin{aligned} &\text{but that'll mean that all the points in the positive quadrant are part of a triangle and thats is just not true.}\\ &\text{and thats is where the hypothenuse/equation of the line enters in actions}\\ \end{aligned}$$ $$\\[3ex]$$ $$ \mathbf{PlanePoint} \longrightarrow p \quad | \quad \mathbf{disHypotenuse} = \mathbf{n} \cdot \mathbf{p} - \mathbf{offset} < 0 $$ $$\\[3ex]$$ $$\begin{aligned} &\text{so the points that are also positive thanks to its inner properties in the plane, but also}\\ &\text{negative thanks to the equation of the line, points negative are going to be the points }\\ &\text{that lay inside the triangle.}\\ \end{aligned}$$


float sdf =  ( sign(disHypotenuse) < 0 && screenSpace.y > 0 && screenSpace.x > 0 ) ? 1.0 : 0.0 ;

float4 col = colorBlack;

col = fixed4(sdf, sdf, sdf, 1.0);

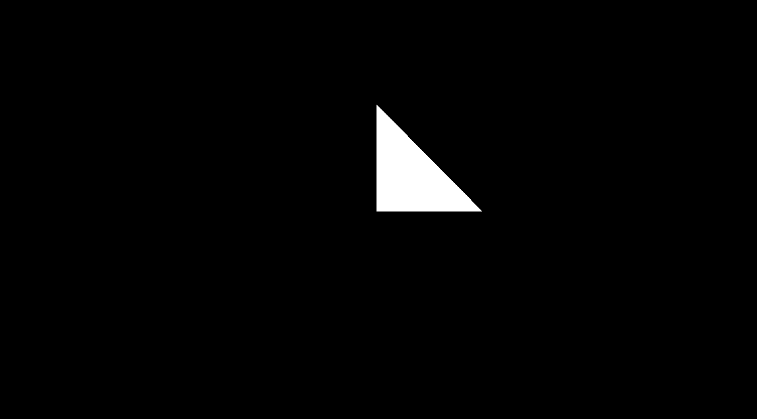

$$\text{And this is how we are going to get this image plotted in the shader.}$$

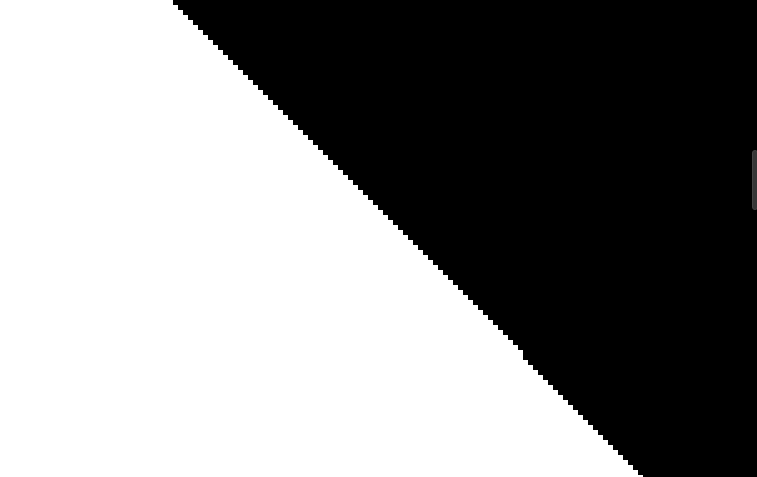

$$\text{But if we just graphics the code like this we are going to get this edges.}$$

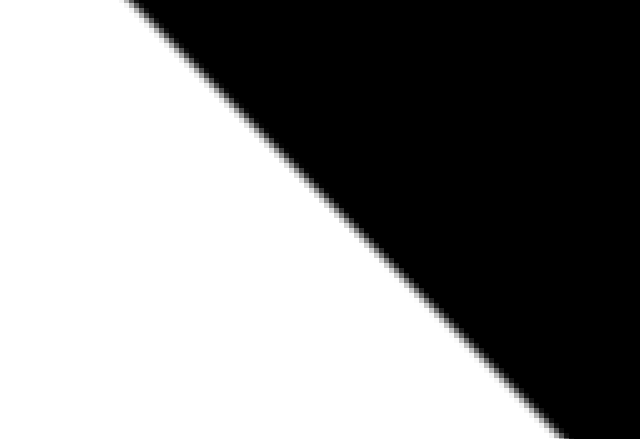

$$\begin{aligned} &\text{Which are very very sawtoothty, and which makes the look of it really really difficult to look at.}\\ &\text{So if we want to implement the techniques that we had learn on regards of how to smooth this edges.}\\ &\text{we are going to need to set this things like this.}\\ \end{aligned}$$

float sdf =  ( sign(disHypotenuse) < 0 && screenSpace.y > 0 && screenSpace.x > 0 ) ? 1.0 : 0.0 ;

float shader = 0.0;

if(sdf == 1.0)
{

    float shaderSmooth =  min(abs(disHypotenuse), min(screenSpace.x, screenSpace.y));

    shader = shaderSmooth;

    }

float shaderOut =  smoothstep(0.0, 0.004, shader);

float col = fixed4(shaderOut, shaderOut, shaderOut, 1.0);

return col;

$$\begin{aligned} &\text{The goal here is to identify how we could make the information be smoothed using the values }\\ &\text{that we already got. So, the first thing that we could make use for in here, is going to }\\ &\text{be the signdistance. of the hypothenuse }\\ &\text{we are going to compare if the values from the sign distance are within a range and if they are}\\ &\text{we shade the colors into black. Thanks to the smooth function.}\\ &\text{and to shade the right borders we just take the comparation of the values which are lesser than 0.004}\\ \end{aligned}$$ $$\begin{aligned} &\text{And if the values fall into the bounds of the smoothstep is how we are going to shade the }\\ &\text{pixels output }\\ \end{aligned}$$

$$\begin{aligned} &\text{And if we want to put everything more packaged and without too many comparations and evaluation }\\ &\text{of minimus, and evaluation of absolutes. we can just package all this theories into something }\\ &\text{more precise, which means lesser evaluations.}\\ &\text{}\\ \end{aligned}$$

fixed4 frag (PixelData i) : SV_Target
{


float2 uv =  i.uv ;

float4 colorWhite = float4(1,1,1,1); // Color white.
float4 colorBlack = float4(0,0,0,1); // Color Black.

float2 coordinateScale = (uv * 2.0)  - 1.0;

float2 size = float2(0.5 ,0.5);

float2 screenSpace = coordinateScale;

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

screenSpace = -screenSpace;

float sdf = max(max(screenSpace.x, screenSpace.y), disHypotenuse);

float shader = 1.0 - smoothstep(0.0, 0.01, sdf);

float4 col = colorBlack;

col = fixed4(shader, shader, shader, 1.0);

return col;

}

$$\begin{aligned} &\text{The idea is to create a relationship, that makes sense with few lines of code.}\\ &\text{Explain the sames theories but with few lines of code. }\\ \end{aligned}$$

screenSpace = -screenSpace;

float sdf = max(max(screenSpace.x, screenSpace.y), disHypotenuse);

$$\begin{aligned} &\text{And to do that we only need this lines, the idea here by reflecting the points on the plane}\\ &\text{we are going to get the values of the borders in a negative representation, and cuz }\\ &\text{the sign distance also is negative, then we are going to get always negative if the point is }\\ &\text{in the triangle and positive if its outside.}\\ &\text{and all of this is thanks to the max function, that allow us to make this representation.}\\ &\text{And remember that we are only going to paint values that fall in the negative section.}\\ \end{aligned}$$

$$\begin{aligned} &\text{Now if you want to draw an issosceles triangle, or a rhombus the only thing that you need to do}\\ &\text{is modify the values of the screenspace X and Y, into their absolutes, like this. }\\ \end{aligned}$$ $$\begin{aligned} &\text{This would be for the ISSOSCELES TRIANGLE}\\ &\text{}\\ \end{aligned}$$

fixed4 frag (PixelData i) : SV_Target
{

float2 uv =  i.uv ;

float4 colorWhite = float4(1,1,1,1); // Color white.
float4 colorBlack = float4(0,0,0,1); // Color Black.


float2 coordinateScale = (uv * 2.0)  - 1.0;

float2 size = float2(0.5 ,0.5);

float2 screenSpace = coordinateScale;

screenSpace = float2(abs(screenSpace.x), screenSpace.y);

float disHypotenuse = dot(size, screenSpace ) - (size.x * size.y);

screenSpace = -screenSpace;

float sdf = max(max(screenSpace.x, screenSpace.y), disHypotenuse);

float shader = 1.0 - smoothstep(0.0, 0.01, sdf);

float4 col = colorBlack;

col = fixed4(shader, shader, shader, 1.0);

return col;
}


$$\begin{aligned} &\text{This would be for the RHOMBOUS}\\ &\text{}\\ \end{aligned}$$

screenSpace = float2(abs(screenSpace.x), abs(screenSpace.y));
